Siemens Low Voltage Circuit Protection General Duty Safety Switches. Type ENCLOSED, SAFETY SWITCH Std UL V. Rating 240V A. Rating 100A Wattage 3W No. Of Poles 3P F. Rating 60Hz Action DOUBLE THROW Material 304SS Enclosure TYPE 3R. 2-3 point mounting holes. O. Cycles 10000 O. Temperature (-20F-120F) AMBIENT TEMPERATUREEnvironmental Conditions OUTDOOR
Modified Industry Description
100A 3P 240V 3W NF GD DT TYPE 3R

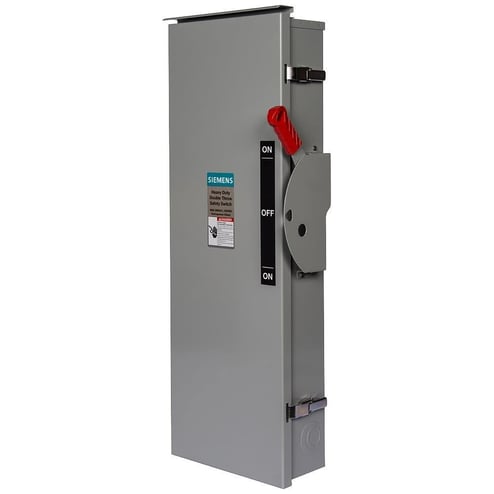

Siemens DTGNF323R Enclosed General Duty Non-Fused Safety Switch, 240 VAC, 100 A, 40 hp, TPDT Contact, 3 Poles
Double throw safety switches are intended to transfer loads from one power source to another. all 2 and 3-pole double throw switches are suitable for use as service equipment. all are UL listed. switches are rated for use on systems up to 10000 A when protected with class H fuses or 100000 A when protected with class R or class T fuses. they can also be used to connect a single source of power to either of two loads. in this application it is necessary to field modify fusible switches so that the fuses are on the load side of the switching mechanism. A cover interlock is provided on all amperage ratings. the operating handle may be padlocked in the off position.
