Thomas & Betts Thomas & Betts RD10711
Thomas & Betts RD10711
Kirby Risk #: 2005474
UPC: 78621083035, 786210830353, 30786210830354
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Thomas & Betts
Description
Industry Description

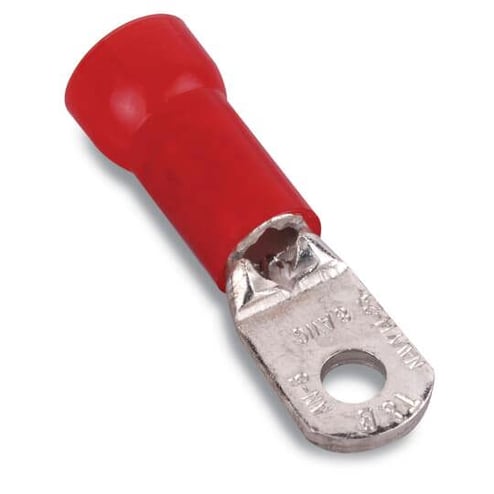

Nylon Insulated Large Ring Terminal, Length 1.45 Inches, Width .45 Inches, Maximum Insulation .270, Bolt Hole 1/4 Inch, Wire Range 8AN, Color Red, Copper, Tin Plated
Modified Industry Description
INS NYL RING TERM, 8AN, 1/4, RED
AD Description
Sta-Kon® RD10711 RD Series Insulated Ring Terminal, 8 AN AWG Conductor, 1.45 in L, Brazed/Overlapped Seam Barrel, Copper, Red
Vendor Description
Sta-Kon® wire terminals offer more copper and a wider funnel to assure premium connection with less work in a line that includes insulated and non-insulated terminals, splices, wire joints, disconnects, ferrules, heat shrinkable terminals, splices and disconnects.
Specifications
| Brand Name |
Thomas & Betts
|
|---|---|
| Color |
Red
|
| Conductor Size |
8 AN
|
| Country of Origin |
MX
|
| Finish |
Tin Plated
|
| Material |
Copper
|
| Package_Quantity |
200
|
| Special Features |
|
| Standard |
UL E9809
|
| Stud_Size |
1/4
|
| Sub_Brand |
Sta-Kon
|
| Type |
Insulated
|
| Voltage Rating |
600
|
