Allen-Bradley Allen-Bradley 1492-L6T-G
Allen-Bradley 1492-L6T-G
Kirby Risk #: 2003445
UPC: 66207305546, 662073055464
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Allen-Bradley
Description
Industry Description

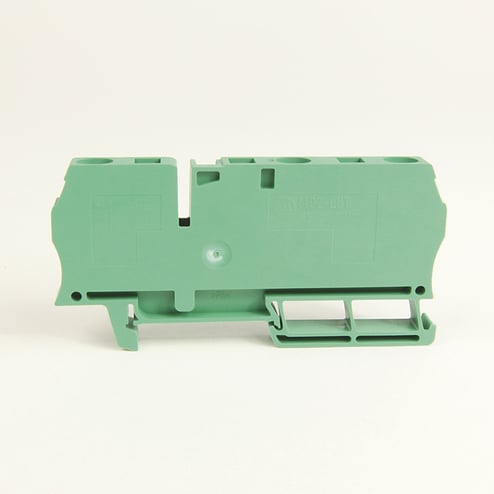

Terminal Block, Spring Clamp Connection, Feed Through with 2 Connection Points on One Side, 8.1 x 90 x 38mm (0.319 x 3.54 x 1.5 in), 1 Pole, Green, VOLTAGE RATING UR - 600V AC/DC, CSA - 600V AC/DC, IEC - 800V AC/DC, ATEX - 550V AC/DC, M
Modified Industry Description
2 CIRCUIT GREEN SPRING CLAMP TERMINAL BLOCK, 0.319 X 3.54 X 1.5 IN
Specifications
| Amperage Rating |
50
|
|---|---|
| Brand Name |
Allen-Bradley
|
| Color |
Green
|
| Conductor Range |
22-8
|
| Conductor Size |
UL: 22-8 AWG (50A @600V AC/DC)\nCSA: 20-8 AWG (50A @600V AC/DC)\nIEC: 6mm (41A @800V AC/DC)\nEEx e II: 6mm/20-8 AWG (36A @550V AC/DC)
|
| Country of Origin |
MUL
|
| Operating_Voltage |
2
|
| Special Features |
2 Connection points on one side
|
| Standard |
UL,CSA,CE,CUL,MARINE,
|
| Sub_Brand |
Allen-Bradley
|
| Terminal_Size |
8.1 x 90 x 38mm (0.319 x 3.54 x 1.5 in)
|
| Type |
L Line Terminal Block
|
| Voltage Rating |
550/600/800//550/600/800
|
