Allen-Bradley Allen-Bradley 1492-J16-G
Allen-Bradley 1492-J16-G
Kirby Risk #: 2003123
UPC: 66207305832, 662073058328, 00662073058328, 10662073058325
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Allen-Bradley
Description
Industry Description

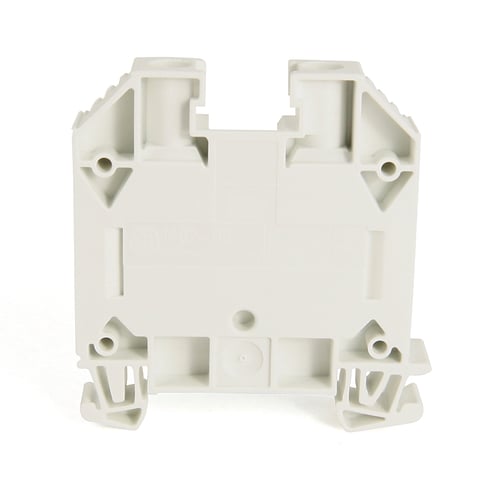

Terminal Block, Screw Connection, Feed Through, 12 x 60 x 56mm (0.472 x 2.36 x 2.2 in), 1 Pole, Green, VOLTAGE RATING UR - 600V AC/DC, CSA - 600V AC/DC, IEC - 1000V AC/DC, ATEX - 690V AC/DC, MAXIMUM CURRENT RATING UR - 85A, CSA - 85A, I
Modified Industry Description
12 X 60 X 56 MM GREEN 1 POLE TERMINAL BLOCK, FEED THROUGH
Specifications
| Amperage Rating |
66/76/85
|
|---|---|
| Brand Name |
Allen-Bradley
|
| Color |
Green
|
| Conductor Size |
UR - #18...4 AWG, CSA - #18...4 AWG, IEC - 16mm², ATEX - #16...6 AWG
|
| Country of Origin |
MUL
|
| Special Features |
Screw Connection, Feed Through, 1 Pole, Green, Pkg. Qty. of 50
|
| Standard |
UL,CSA,CE,CUL,MARINE,KC
|
| Sub_Brand |
Allen-Bradley
|
| Terminal_Size |
12 x 60 x 56mm (0.472 x 2.36 x 2.2 in)
|
| Type |
IEC Screw Terminal Block
|
| Voltage Rating |
600/690/1k//600/690/1k
|
