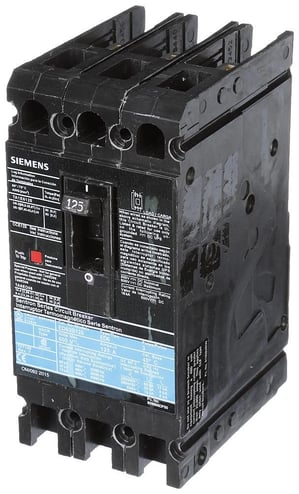

Siemens Siemens ED63B125L
Siemens ED63B125L
Kirby Risk #: 2000235
UPC: 78364324465, 783643244658, 00783643244658
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Siemens
Description
Industry Description
SIEMENS LOW VOLTAGE SENTRON MOLDED CASE CIRCUIT BREAKER WITH THERMAL - MAGNETICTRIP UNIT. STANDARD 40 DEG C BREAKER ED FRAME WITH STANDARD BREAKING CAPACITY. 125A 3-POLE (18KAIC AT 600V) (25KAIC AT 480V). NON-INTERCHANGEABLE TRIP UNIT. SPECIAL FEATURES LINE AND LOAD SIDE LUGS (TA1E6125) WIRE RANGE 3 - 3/0AWG (CU) / 1- 2/0AWG (AL). DIMENSIONS (W x H x D) IN 3.00 x 6.4 x 3.92.
Modified Industry Description
MCCB 125A 3P 600 VAC W/LI-LO LUGS
AD Description
Siemens Sentron™ ED63B125L Type ED6 Low Voltage Molded Case Circuit Breaker, 600 VAC/250 VDC, 125 A, 18 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Vendor Description
Siemens Sentron™ series circuit breakers have a long history of excellent performance in both the commercial and industrial market segments, they are tried and true in the most critical applications. Siemens Sentron™ series circuit breakers are available in nine frame sizes from 125 to 2000 A.
Specifications
| Actuator |
Varying
|
|---|---|
| Amperage Rating |
125
|
| Auxiliary_Contacts |
N/A
|
| Brand Name |
Siemens
|
| Connection |
Line/Load lugs installed
|
| Country of Origin |
MX
|
| Enclosure |
Varying
|
| Environmental_Conditions |
N/A
|
| Frame |
ED6/125A
|
| Frequency_Rating |
50/60
|
| Interrupt_Rating |
18
|
| Material |
N/A
|
| Number_Of_Poles |
3
|
| Operating_Temperature |
40C
|
| Phase |
3
|
| Special Features |
|
| Standard |
HACR
|
| Sub_Brand |
Siemens
|
| Trip_range |
N/A
|
| Trip_Type |
Thermal Magnetic
|
| Type |
Low Voltage
|
| Voltage Rating |
600 VAC/250 VDC
|
| Width_2 |
15.1000
|
| Width_3 |
40.0000
|
