Hubbell Hubbell HBLFRSY


Description

Industry Description

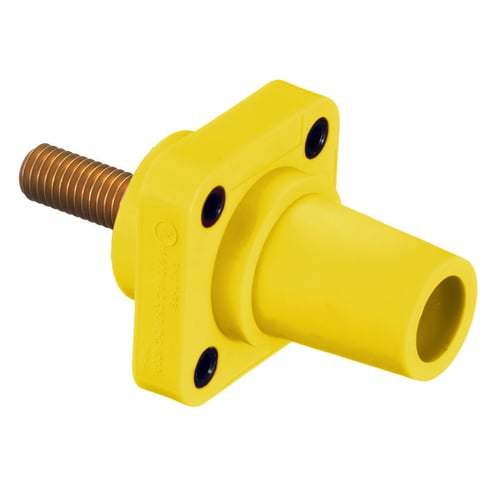

Hubbell Wiring Device Kellems, Heavy Duty Products, Single Pole Devices,Industrial Grade, Female Receptacle, 300/400A 250V DC/600V AC, SingleConductor, Threaded Stud, Yellow

Modified Industry Description

300 & 400A FEMALE REC STUD TYPE

AD Description

Wiring Device-Kellems HBLFRSY 16 Series Female Heavy Duty Industrial Grade Standard Single Pole Receptacle, 600 VAC/250 VDC, 400 A, 4 to 4/0 AWG Wire, Stud Connection, NEMA 3R/4X/12 NEMA Rating

Vendor Description

Hubbell Wiring Device-Kellems offers a full line of innovative, high quality, series 15 and series 16 1-pole plugs, receptacles and accessories for the most demanding environments. 1-pole devices are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. 1-pole devices have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength non-conductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve.

Specifications

Amperage Rating
400
Application
High Ampacity Connections
Brand Name
Hubbell
Color
Yellow
Connection
Stud Type
Conductor Size
#4 AWG to #4/0 AWG
Country of Origin
CN
Environmental_Conditions
Indoor Dry unless Protected by Additional Means
Material
Elastomer/Composite
Mounting
Threaded Thru-Hole
NEMA_Rating
Non-NEMA
Number_Of_Poles
1
Number_Of_Wires
1
Phase
1
Size
Standard Sized Product
Special_Features

  • Highly conductive brass contacts improve performance and extend life
  • Insulgrip® body design
  • Non-metallic safety retaining screw
  • Turn and lock symbol indicates devices are properly connected

Standard
UL 498 for attachment plugs and receptacles UL 1691 draft standard for single pin and sleeve devices intended for theatre, stage and studio applications
Sub_Brand
Hubbell Wiring Device-Kellems
Type
Panel Mount Receptacle
Voltage Rating
600//250
Wattage
240,000
