Panduit Panduit LCC2-14AW-Q

Name: Panduit LCC2-14AW-Q
Brand: Panduit
SKU: 1996805
Price: 15.44 USD
Availability: InStock

Panduit LCC2-14AW-Q

Kirby Risk #: 1996805

UPC: 00074983797899, 07498379789, 30074983797890, 074983797899

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Panduit

Description

Industry Description

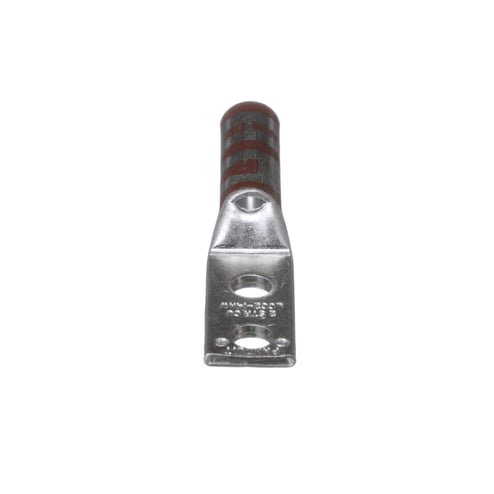

Two-hole, long barrel lug with window, #2 AWG wire, 1/4 stud hole, .63 hole spacing.

Modified Industry Description

Copper Compression Lug, 2 Hole, #2

AD Description

Panduit® Pan-Lug™ LCC2-14AW-Q LCC-W 2-Hole Compression Lug, 2 AWG Copper Conductor, Die Code: P33, 1/4 in Stud, Tin Plated Copper

Brand Name	Panduit
Color	Brown
Conductor Material	Copper
Conductor Size	2
Country of Origin	MEX
Material	Tin Plated Copper
Mounting	1 1/4
Number_Of_Holes	2
Package_Quantity	1
Size	#2 Code
Special Features	Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection For use with stranded copper conductors Inspection window to visually assure full conductor insertion Long barrel maximizes number of crimps and provides premium wire pull-out strength and electrical performance Tin-plated to inhibit corrosion
Standard	CSA certified C22.2 No. 65-13, UL Listed to 486A-486B File #E52164, ABS approved, NEBS Level 3
Stud_Size	1/4
Sub_Brand	Panduit
Temperature_Rating	90
Type	2-Hole
Voltage Rating	35
