Burndy Burndy YAEV10

Name: Burndy YAEV10
Brand: Burndy
SKU: 1993050
Price: 3.78 USD
Availability: InStock

Burndy YAEV10

Kirby Risk #: 1993050

UPC: 00781810565254, 78181056525, 781810565254

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Burndy

Description

Industry Description

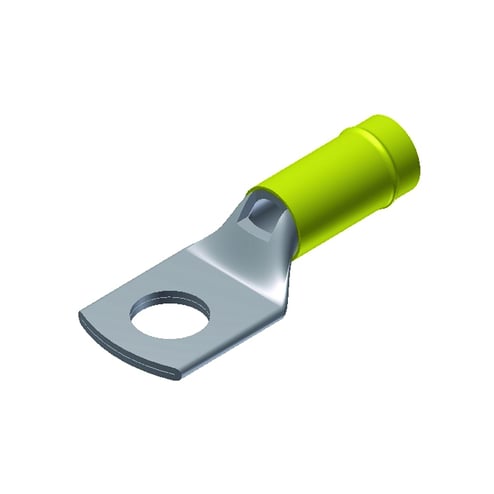

Ring Tongue Copper Tubing Terminal, 1.14 in L, .37 in W, Tin Plated, 600 Volts Max., 105 Deg C Max.

Modified Industry Description

RING CU TUBING TERMINAL 600V 12 - 10 AWG 600V

Application	For High Vibration Applications Encountered In Aircraft And Aboard Ships As Well As Motor Lead Applications In Hospitals, Industrials And Generating Plants
Brand Name	Burndy
Cable_Size	12 - 10 AWG
Color	Yellow
Conductor Size	12 to 10
Country of Origin	US
Insulation	Nylon
Material	Copper
Package_Quantity	1
Special Features	0.26 in hole to end, 0.97 in hole to barrel length, 0.209 in Dia maximum insulation 300 volt nylon insulation: high dielectric strength and stability in demanding oily environmental conditions AN 12-AN 10 aircraft cable size, 12 to 10 AWG copper stranded conductor Double thick tongue Provides maximum reliability and electrical capacity plus an extra strong terminal tongue Electro tin plated, provides long lasting corrosion resistance For installation tool: ratchet: MR8D94, MR8-33-T1, M8ND tool with N10ET-23 die, MR4 10M, MR18 tool Manufactured from 1-piece pure electrolytic copper, provides high conductivity, low resistance with no seams to split plus ductility for excellent crimp forming properties Nylon insulation Nylon insulation is locked in place: insulation will not move or twist off Pure electrolytic tin plated
Standard	UL Listed, RoHS Compatible, MIL-T-7928 Listed
Stud_Size	#8 to #10
Sub_Brand	Burndy
Type	Heavy Duty
Voltage Rating	300
