Panduit Panduit AST10-5-C100


Description

Industry Description

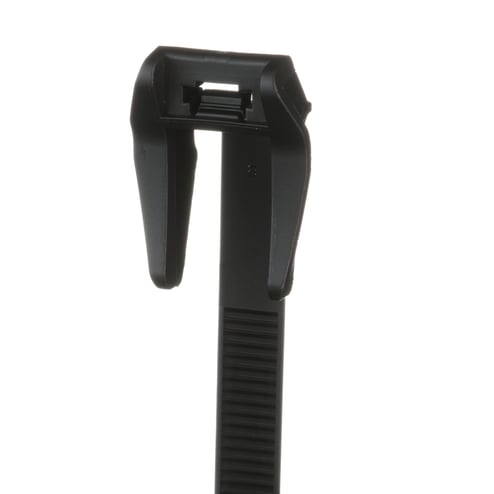

The aerial support tie in black with integral 1/2" (12.7mm) spacer for support strand applications is made of weather-resistant polypropylene. It is 5.6" long and 0.45" wide (142 x 11.4 mm), features a releasable locking style and can support a maximum bundle diameter of 1.0" (25.4 mm). It is designed for outdoor environments and comes in packages of 100.

Modified Industry Description

Aerial Support Tie, 5.6INL (142mm),

AD Description

Panduit® AST10-5-C100 Standard Aerial Support Cable Tie, 5.6 in L x 0.448 in W x 0.06 in THK, Polypropylene, Black

Specifications

Application
General
Brand Name
Panduit
Bundle_Diameter
1
Color
Black
Country of Origin
USA
Lock_Mechanism
Releasable
Material
Polypropylene
Package_Quantity
100
Special Features

  • 1-piece construction with integral 1/2 in spacer reduces inventory costs of separate spacer and bands and installs faster to lower installed cost
  • Designed to attach coax or telephone cable to the 1/4 or 5/16 in support strand to form the expansion loop and keep equipment and cables clear of pole hardware
  • Hand install
  • Releasable and re-usable
Standard
UL Listed #E56854, UL Recognized #E56854
Sub_Brand
Panduit
Temperature_Rating
-76 to 239
Tensile_Strength
75
Thickness
0.06
Type
Aerial Support Standard
