Thomas & Betts Thomas & Betts LB107


Description

Industry Description

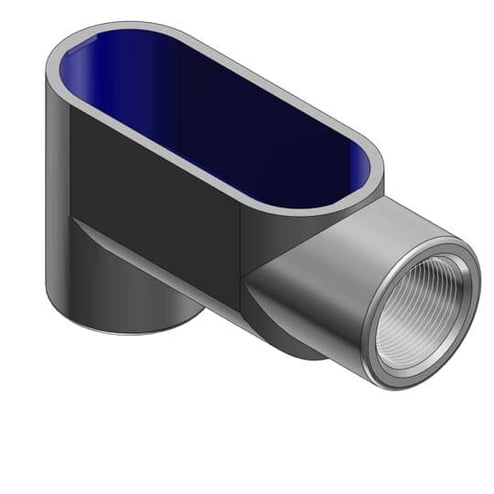

4 Inch Form 7, LB Conduit Body, Body Material Gray Iron with Zinc Plating and Baked On Epoxy Powder Coat with BlueKote Internal Coating for Use with Rigid/IMC Conduit

Modified Industry Description

4IN CONDUIT BODY,GRAY IRON,LB,F-7

AD Description

T&B® BlueKote® LB107 Type LB Conduit Body, 4 in Hub, Form 7 Form, 243 cu-in Capacity, Gray Iron, Zinc Plated with Epoxy Powder Coated

Vendor Description

For over 100 years the T&B® brand has been recognized as the leading brand of electrical fittings. industry standards such as Liquidtight® fittings, Erickson® couplings and many others are registered trade marks. The innovation continues with numerous products and features for both ordinary and hazardous locations.

Specifications

Application
Conduit bodies are installed in conduit systems to connect sections, act as pull outlets when conductors are being installed and provide easy access for splices in branch conductors.
Brand Name
Thomas & Betts
Configuration
LB
Country of Origin
CN
Finish
Zinc Plated/Epoxy Powder Coated
Form
7
Hub_Size
4
Material
Gray Iron
Special Features

  • Bluekote® Teflon based internal finish provides a slick, easy glide internal surface which significantly lowers the amount of force necessary to pull wires
  • Bodies are designed with a flat back, allowing more cubic inch capacity
  • Conduit bodies make 90 deg bends in conduit runs, act as mounting outlets for wiring devices and lighting fixtures and to provide access to conductors for maintenance and future system changes
  • Eliminates rough internal surfaces that can cut into cable jacket, insulation and conductors during pulling and also reduces installation time and risk of installer strain
  • Triple layer protection including two layers of epoxy coating which stops corrosion in its tracks
Standard
UL E2969
Sub_Brand
Thomas & Betts
Trade_Size
4
Type
Type LB
Width_2
9.7500
