Wire & Cable Wire & Cable 4/0-4/0-4/0-2/0 3E AL SERV


Description

Industry Description

4/0-4/0-4/0-2/0 3E AL SERVICE ENTRANCE TYPE SER PVC JACKET 1000 FT

Modified Industry Description

4/0 SER ALIMINUM SERVICE ENTRANCE WIRE 1000 FT

AD Description

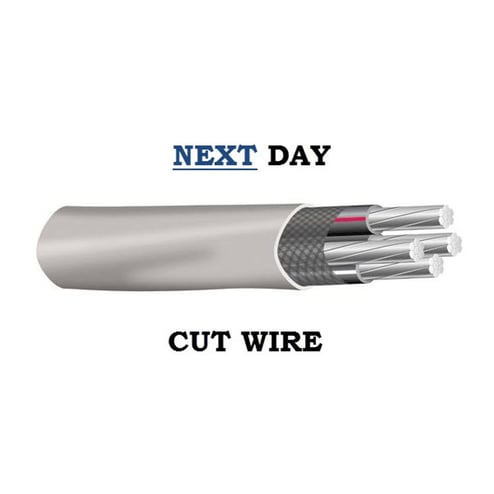

Southwire® 13107806 Type SER Service Entrance Cable With Bare Ground, 600 VAC, (3) 4/0 AWG Stranded Aluminum Conductor, 1000 ft L, Gray

Vendor Description

Building wire is the most frequently specified wiring solution today for commercial, residential and institutional construction projects. General Cable comprehensive line of high quality building wire is designed to meet the most stringent electrical specifications and installation challenges. Our building wire products are recognized for their reliable performance, durability and safety and can be found in many high profile projects throughout North America.

Specifications

Amperage Rating
205
Brand Name
Wire & Cable
Color
Gray
Conductor Material
Aluminum
Conductor Type
Stranded Aluminum
Conductor Size
4/0
Country of Origin
USA
Insulation_Material
Cross Linkable Polyethylene/PVC
Jacket_Material
PVC
Number Of Conductors
3
Outside_Diameter
1496
Package_Quantity
1000
Special Features

  • 1 equipment ground conductor stranding
  • 150 A at 60 deg C, 180 A at 75 deg C, 205 A at 90 deg c and 200 A at dwelling allowable ampacities
  • A gray sunlight resistant polyvinyl chloride (PVC outer jacket covers the entire assembly
  • A reinforcement tape is wrapped around the conductors for added strength and conformity
  • Allowable ampacities shown are for general use as specified by the national electrical code, 2011 Edition, section 310.15
  • Allowable ampacities wet or dry locations, for ampacity derating purposes at 90 deg C
  • Allowable ampacities when terminated to equipment for circuits rated 100 A or less or marked for 14-1 AWG conductors at 60 deg C
  • Allowable ampacities when terminated to equipment for circuits rated 100 A or marked for conductors larger than 1 AWG conductors at 75 deg C
  • Black and black with red stripe Southwire style SER cable's phase conductors are identified by a colored stripe on the insulation
  • Dwelling - for units, conductors shall be permitted at listed ampacities as 120/240 VAC, 3-wire, single phase services and feeders per NEC article 310.15
  • Individual conductors rated XHHW or THHN/THWN jacket and inner conductors are sunlight resistant
  • Southwire type SE cable is constructed with AlumaFlex® AA-8000 series aluminum alloy, compacted stranded conductors
  • Style SEU cable has two phase conductors surrounded by a concentric neutral while the SER style has two, three or four phase conductors and a bare neutral
  • The conductors are covered with a sunlight resistant type XHHW-2 or type THHN/THWN-2-insulation
Sub_Brand
Southwire
Type
SER
Voltage Rating
600
