Southwire Southwire NM-B-4/3-G-CU-1000FT
Southwire NM-B-4/3-G-CU-1000FT
Kirby Risk #: 1980787
UPC: 00032886263774, 032886263774, 03288626377
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Southwire
Description
Industry Description
4-3 CU NM-B WITH GROUND 1000 FT
Modified Industry Description
4-3 CU NM-B W/G 1000FT
AD Description

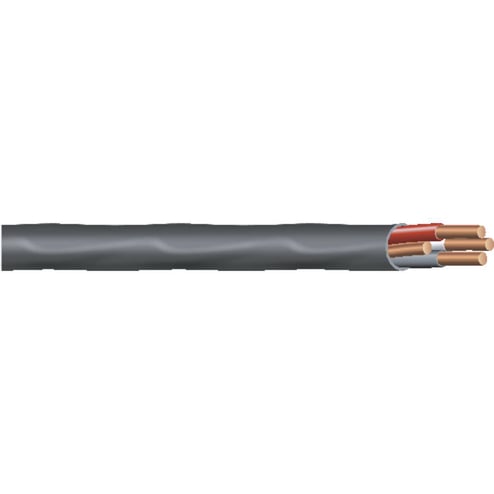

Romex® SIMpull® 63968201 Type NM-B Sheathed Cable With Ground Wire, 600 VAC, (3) 4 AWG Stranded Copper Conductors, 1000 ft Reel L, Black
Vendor Description
Southwire Romex® brand SIMpull® NM-B cable is manufactured as 2, 3, or 4 conductor cable, with a bare ground wire. Copper conductors are annealed (soft) copper. Stranded conductors are compressed stranded. Conductor insulation is 90 deg C-rated polyvinyl chloride (PVC), nylon jacketed. Romex® brand SIMpull® NM-B cable is designed for easier pulling, resulting in easier installation. The cable jacket is color coded for quick size identification; white - 14 AWG, yellow - 12 AWG, orange - 10 AWG and black - 8 AWG and 6 AWG.
Specifications
| Amperage Rating |
70
|
|---|---|
| Application |
Residential
|
| Brand Name |
Southwire
|
| Color |
Black
|
| Conductor Type |
Stranded
|
| Conductor Size |
4
|
| Country of Origin |
USA
|
| Insulation_Material |
PVC
|
| Jacket_Material |
Nylon
|
| Number Of Conductors |
4
|
| Outside_Diameter |
814
|
| Package_Quantity |
1000.000
|
| Special Features |
|
| Sub_Brand |
Southwire
|
| Type |
NM-B
|
| Voltage Rating |
600
|
