Panduit Panduit DNF18-187-M
Panduit DNF18-187-M
Kirby Risk #: 1977786
UPC: 30074983827092, 07498382709, 00074983827091, 074983827091
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Panduit
Description
Industry Description

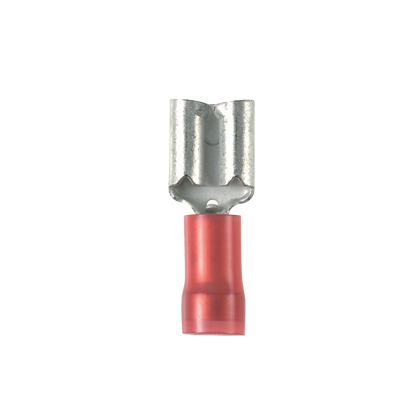

The vibration resistant female disconnect is made of brass and is tin-plated. It is barrel insulated in a red, nylon housing. It has a tab size of 0.187 x 0.032" (4.8 x 0.8 mm) and supports a wire range of 22-18 AWG (0.5-1.0 mm²). It is 0.76" (19.3 mm) long and 0.23" (5.9 mm) wide. The disconnect has a funnel entry barrel configuration and an insulation grip sleeve barrel. It comes in boxes of 1000.
Modified Industry Description
Female Disconnect, nylon barrel
AD Description
Panduit® Pan-Term® DNF18-187-M Vibration-Resistant Female Disconnect, 22 to 18 AWG Conductor, 0.187 in W x 0.032 in THK Tab, Sleeve Barrel, Brass, Red, Insulated
Specifications
| Color |
Red
|
|---|---|
| Connection |
Funnel Entry
|
| Conductor Size |
22 to 18
|
| Finish |
Tin Plated
|
| Insulation |
Nylon - Barrel Insulated
|
| Material |
Brass
|
| Mounting |
0.28
|
| Standard |
UL 310 Listed
|
| Type |
Insulated Loose Piece Vibration Resistant
|
