3M 3M SC0002
3M SC0002
Kirby Risk #: 1975618
UPC: 054007146483, 05400714648, 00054007146483
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: 3M
Description
Industry Description

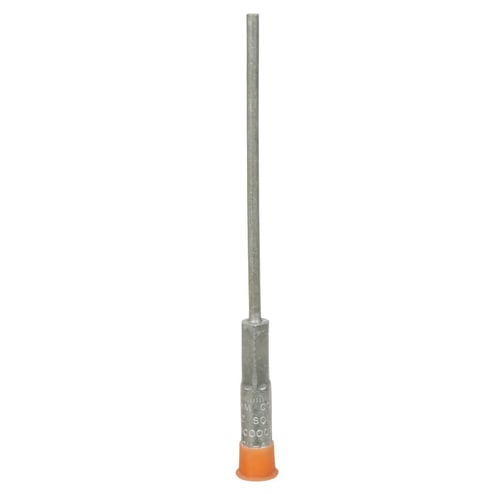

3M™ SC Stem Connector is uesd when connector cable to an overhead line. The connector is tin plated aluminum for use on either copper or aluminum cable conductors. The stem "pin" is tin plated copper. It is rated up to 35 kV.
Modified Industry Description
Stem Connector
AD Description
3M™ 054007-14648 SC Series Stem Connector, 35 kV, 4 to 2 AWG Conductor, 1/4 in Dia x 6 in L Stem, Aluminum
Vendor Description
3M™ Stem Connectors SC Series feature a tin plated aluminum barrel for installations on either copper or aluminum cable conductors and are used when connecting a riser cable to an overhead line. The SC series connectors are also used when terminating an insulated power cable with 3M™ terminations. SC series connectors are provided with a factory crimped and sealed, tin plated copper stem for aerial line connection. A suggested accessory to the stem connector is the CP-1 Parallel Clamp that enables the connection of the stem connector to the overhead jumper wire.
Specifications
| Application |
Aluminum or Copper Conductors
|
|---|---|
| Brand Name |
3M
|
| Capacity |
4 AWG
|
| Country of Origin |
US
|
| Label_Description |
3M(TM) STEM CONNECTOR SC0002, 4 AWG STRANDED, 2 AWG SOLID, 10 PER CASE
|
| Material |
Aluminum
|
| Series |
SC Series
|
| Sub_Brand |
3M
|
| Type |
Stem Connector
|
| Voltage Rating |
35
|
