Bussmann Bussmann 16370-1

Name: Bussmann 16370-1
Brand: Bussmann
SKU: 1974893
Price: 150.77 USD
Availability: InStock

Bussmann 16370-1

Kirby Risk #: 1974893

UPC: 05171227134, 051712271349, 00051712271349

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Bussmann

Description

Industry Description

310A 600V Distribution 1 Pole Power Terminal Block

Modified Industry Description

TERMINAL BLOCK 1P 310A 600V

AD Description

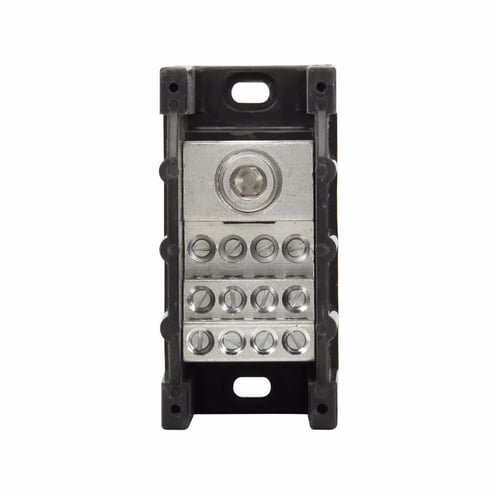

Bussmann 16370-1 Barrier Splicer Power Distribution Block, 600 VAC/VDC, 310 A, 1 Pole, 6 AWG to 350 kcmil Wire, Thermoplastic

Amperage Rating	310
Application	Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
Brand Name	Bussmann
Color	Black
Country of Origin	MX
Finish	Tin Plated
Material	Thermoplastic
Number_Of_Poles	1
Size	1.98 In Length X 4.00 In Width X 3.32 In Height
Special Features	(1) screw primary, (12) quick connect secondary 6 AWG to 350 kcmil copper, aluminum line, (12) 14 to 4 AWG copper, 12 to 4 AWG aluminum load connection 6 AWG to 350 kcmil copper/aluminum line, (12) 14 to 4 AWG copper, 12 to 4 AWG aluminum load wire Dual wire applications are only viable when using two wires of the same size, stranding and insulating and conductor material in the same port Ferrule applications allow for the use of a broader range of conductor stranding and simulate a more efficient, solid wire connection with the terminal port Molded thermoplastic base, tin plated aluminum connector Rated for dual wire port application to increase the possible number of lineside and loadside connections SMD/SMT style mounting
Standard	UL, CSA
Sub_Brand	Cooper Bussmann
Type	Barrier
Voltage Rating	600
