O-Z/Gedney O-Z/Gedney 0ZGX57


Description

Industry Description

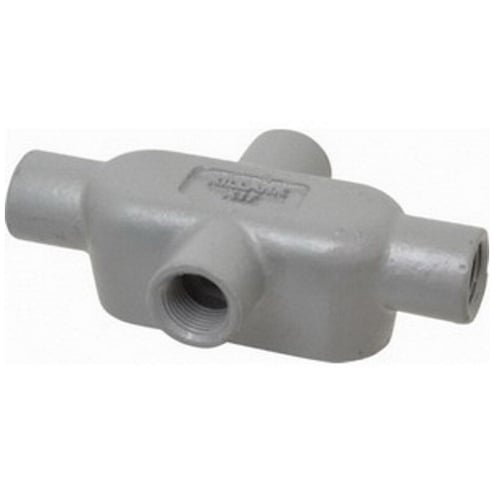

OZ-Gedney Type X Conduit Body, 1-1/2 IN Hub, Form: 7, Length: 8-3/16 IN, 4-5/8 IN Width, 2-9/16 IN Height, Iron, Finish: Zinc Electroplated With Aluminum Enamel, Gray, Connection: Tapered FNPT, 3 (2 AWG) Conductors, 27 CU-IN Volume, Third Party Certification: UL File Number E-18095, CSA 009795, Applicable Third Party Standards: UL 514A, CSA C22.2 No.18, Federal Specification Number A-A-50563, Hazardous Locations: Class 1, Division 2 Per NEC Section 501-4(B), NEMA : FB-1, FB-2.10, For Rigid Conduit And IMC

Specifications

Application
For Rigid Conduit And IMC
Color
Gray
Connection
Tapered FNPT
Country of Origin
MX
Finish
Aluminum
Length1
8.5000
Material
Malleable
Special Features

  • Complete interchangeability with other manufacturers Form 7™ conduit bodies
  • Flat back design for greater wiring capacity and surface mountings
  • Internal volume and maximum wire clearly marked on castings
  • Siede access opening
  • Straight hub placement
  • Suitable for wet locations when used with gasketed covers
Standard
Third Party Certification: UL File Number E-18095, CSA 009795, Applicable Third Party Standards: UL 514A, CSA C22.2 No.18, Federal Specification Number A-A-50563, Hazardous Locations: Class 1, Division 2 Per NEC Section 501-4(B), NEMA : FB-1, FB-2.10
Type
X Conduit Body
