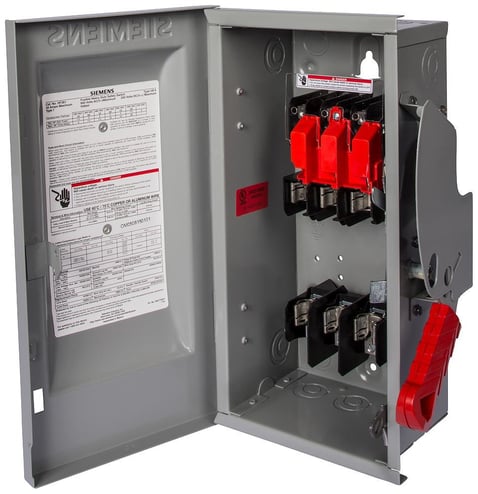

Siemens Siemens HF362G


Description

Industry Description

Siemens Low Voltage Circuit Protection Heavy Duty Safety Switch. 3-Pole 3-Fuse Fused in a type 1 enclosure (indoor). Rated 600VAC (60A). Special features factory installed ground bar.

Modified Industry Description

HDSS FUS 3P3W 600V 60A N1 G BAR

AD Description

Siemens HF362G Enclosed Fusible Heavy Duty Safety Switch, 600 VAC, 60 A, 15/50 hp, ST Contact Form, 3 Poles

Specifications

Action
SINGLE THROW
Actuator
SINGLETHROW
Amperage Rating
60
Application
DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS
Connection
MECHANICALLUGS
Country of Origin
US
Enclosure
NEMA1
Frequency_Rating
TRUE
Insulation
None
Length1
20.0000
Material
Steel
Mounting
Surface
Number_Of_Poles
3
Operating_Temperature
-29
Special Features

  • Arc chutes dissipate heat and prolong switch life
  • Center punch provided for field drilling to allow ON padlocking
  • Defeatable dual cover interlock
  • Designed for hook stick operation
  • Door latch securely holds door closed and allows cover padlocking
  • Drawn cover for increased rigidity and resistance to abuse
  • Embossed aluminum nameplate on heavy duty switches provides highly visible ON/OFF indication
  • Front removable mechanical lugs that are suitable for copper/aluminum 60 or 75 deg C conductors
  • Generous top, bottom and side gutters that meet or exceed NEC wire-bending space requirements
  • Handle can be padlocked in the OFF position with up to (3) padlocks with 5/16 in hasps
  • Highly visible red handle grip
  • Hinged clear line terminal shield with probe holes for inspecting or testing line side terminals
  • Informative door labeling which includes replacement parts list
  • Lugs are field convertible to copper body and to a wide variety of compression connectors
  • Quick-make, quick-break operating mechanism that ensures positive operation
  • Side-hinged door that opens past 180 degrees for easier wiring
  • Spring reinforced fuse clips that assure reliable contact for cool operation
  • Tangential knockouts through 600 A for easy conduit lineup
  • Unique enclosure design increases rigidity and prevents cuts and scrapes to conductors and installer's hands
  • Visible blade, double-break switching action
Standard
UL98
Sub_Brand
VBII
Type
HEAVYDUTYSWITCH
Voltage Rating
600
Wattage
3
