Bussmann Bussmann KTS-R-25

Name: Bussmann KTS-R-25
Brand: Bussmann
SKU: 1961216
Price: 86.10 USD
Availability: InStock

Bussmann KTS-R-25

Kirby Risk #: 1961216

UPC: 051712417068, 05171241706, 00051712417068

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Bussmann

Description

Industry Description

25A 600V Class RK1 Limitron Fast Acting Fuse

Modified Industry Description

25A 600V - RK1 LIMITRON FAST ACTING FUSE REJECTION STYLE

AD Description

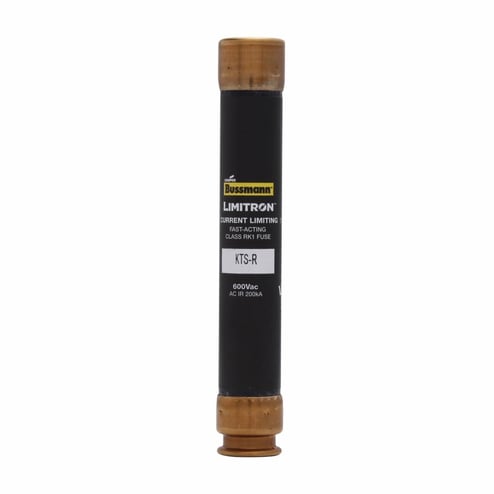

Bussmann Limitron™ KTS-R-25 Current Limiting Low Voltage Fast Acting Fuse, 25 A, 600 VAC, 200 kA Interrupt, Class: RK1, Cartridge Body

Amperage Rating	25
Application	Panelboards
Brand Name	Bussmann
Characteristics	Fast Acting
Connection	Ferrule End X Ferrule End
Country of Origin	MX
Element	Single
Interrupt_Rating	200000 Amp (RMS Symmetrical)
Material	Melamine Glass Tube
Model	KTS-R
Package_Quantity	1
Size	0.81 In Diameter X 5.00 In Length
Special Features	200 kA interrupting rating provides high ratings at all circuit locations 70/30 brass end cap Current limitation for non-inductive circuits provides class RK1 current limiting response to maximum ground fault and short circuit conditions Economical solutions for high fault circuits Melamine tube with silver fuse element
Standard	UL 248-12, CSA C22.2, CE
Sub_Brand	Cooper Bussmann
Type_Of_Indicators	Non-Indicating
Type	Current Limiting, Fast Acting
Voltage Rating	600
