Thomas & Betts Thomas & Betts 6H3

Name: Thomas & Betts 6H3
Brand: Thomas & Betts
SKU: 1960166
Price: 5.30 USD
Availability: InStock

Thomas & Betts 6H3

Kirby Risk #: 1960166

UPC: 783786200054, 30783786200055, 78378620005

Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)

Brand: Thomas & Betts

Description

Industry Description

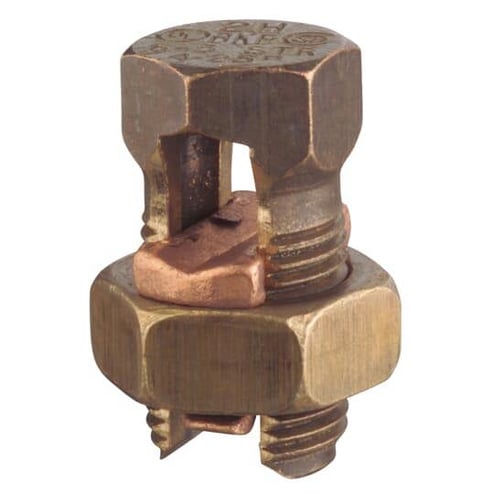

Type H High Strength Split-Bolt Connector made of Bronze Alloy for Use on Copper Conductors. Conductor Range for Equal Main and Tap 6 Sol.-10 Sol.

Modified Industry Description

SPLIT BOLT CONNECTOR

AD Description

Blackburn® 6H3 Type H High Strength Split Bolt Connector, 10 to 6 AWG Solid Copper Conductor, 15/32 x 1-1/8 in, Bronze Alloy

Application	Splicing, tapping or terminating conductors in power and grounding electrical connection.
Bolt_Size	15/32 x 1-1/8
Brand Name	Thomas & Betts
Color	Metallic
Conductor Size	10 to 6
Country of Origin	MX
Material	Bronze Alloy
Package_Quantity	100
Special Features	100 Pieces/Pack 16 AWG stranded conductor range min tap with one max main 6 to 10 AWG solid conductor range for equal main and tap Bolt and nut of hex design up to 350 kcmil Bolt and nut of high-strength corrosion resistant bronze alloy Pressure bar is copper through 40H, copper alloy for 350 kcmil and above Split-bolt connector made of metallic bronze alloy for use on copper conductors Will accommodate three wires of maximum size
Standard	UL E9809
Sub_Brand	Blackburn
Type	Type H High Strength
