Ocal Ocal ELL3-G


Description

Industry Description

Standard Radius Elbow, 40 Mil PVC Coated, Pipe Size 3 Inch/78 Metric, Angle 90 Degrees, Radius 13 Inch/330.20 Millimeters, Offset 16-1/2 Inch/419.10 Millimeters, Straight End 3-1/2 Inch/88.90 Millimeters, Unbent Length 27.42 Inch/696.48 Millimeters, Hot-Dip Galvanized Rigid Steel, Gray

Modified Industry Description

3 in x 90 PVC Dip Galvanized Rigid Elbow

AD Description

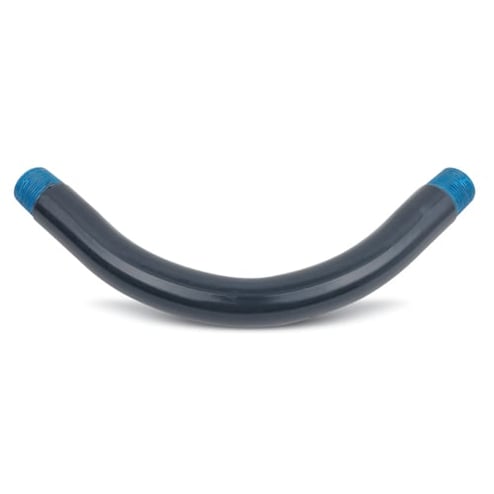

Ocal® OCAL-BLUE® ELL3-G Standard Radius Straight End Conduit Elbow, 3 in Trade, 90 deg, Steel, Hot Dipped Galvanized

Specifications

Application
To Change Direction for Threaded, Rigid Conduit or When Terminating at a Box or Fitting
Bend_Angle
90
Brand Name
Ocal
Color
Gray
Connection
90 Degree Bend
Country of Origin
US
Finish
Hot Dipped Galvanized/PVC Coated
Material
Steel
Radius
13
Special Features

  • A minimum 0.04 in (40 mil) PVC coating on the exterior
  • A nominal 0.002 in (2 mil) blue urethane on the interior
  • Color coded thread protectors for easy identification of conduit size
  • Color coded thread protectors on each end
  • Fabricated from Ocal® PVC coated conduit
  • Factory bent to save wasted time and materials
  • Ocal-Blue® standard radius elbows are factory bent to reduce the time and wasted materials that can result from field bending
Standard
E 46453
Sub_Brand
Ocal
Trade_Size
3
Type
Standard Radius Straight End
Width_2
48.0000
