3M 3M MNG14-14R/SX
3M MNG14-14R/SX
Kirby Risk #: 1959433
UPC: 00051128586631, 05112858663, 051128586631
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: 3M
Description
Industry Description
3M™ Scotchlok™ Color-Coded Small Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
Modified Industry Description
Nylon Insulated w/Insulation Grip
AD Description

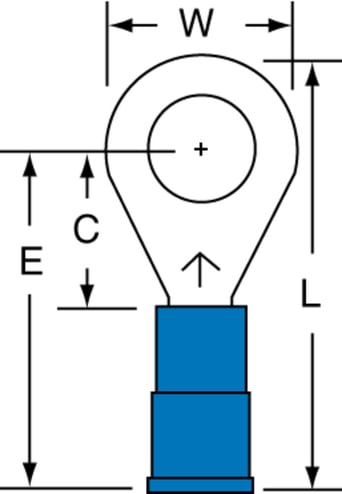

Scotchlok™ 051128-58663 Standard Ring Tongue Terminal, 16 to 14 AWG Conductor, 1.09 in L, 0.09 in ID Butted Barrel, ETP Copper, Blue
Specifications
| Brand Name |
3M
|
|---|---|
| Color |
Blue
|
| Conductor Range |
16-14
|
| Conductor Size |
16 to 14 AWG
|
| Country of Origin |
US
|
| Insulation_Material |
Nylon
|
| Label_Description |
RING NYLON INSULATED, 100/BOTTLE
|
| Material |
ETP Copper
|
| Operating_Voltage |
100 per bottle
|
| Package_Quantity |
100
|
| Special Features |
|
| Standard |
UL and CSA
|
| Stud_Size |
1/4 in
|
| Sub_Brand |
3M
|
| Terminal_Size |
16 - 14 AWG
|
| Type |
Standard
|
| Voltage Rating |
600 to 1000 VAC
|
