Hubbell Hubbell 1221I
Hubbell 1221I
Kirby Risk #: 1957144
UPC: 78358583528, 783585835280, 00783585835280
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description

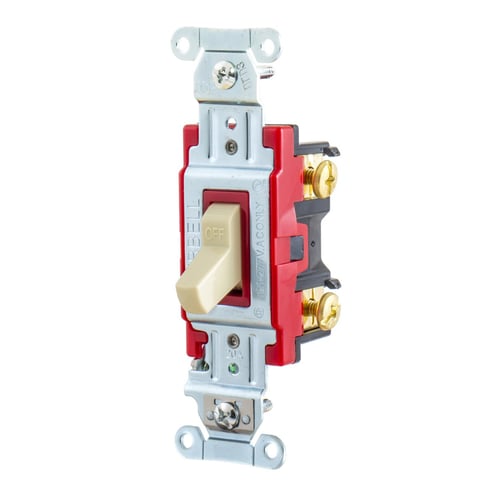

Hubbell Wiring Device Kellems, Switches and Lighting Controls, Hubbell-PRO Series, Toggle Switches, General Purpose AC, Single Pole, 20A120/277V AC, Back and Side Wired , Ivory
Modified Industry Description
20A 120/277V 1 POLE IVORY TOGGLE SWITCH, BACK/SIDE WIRED
AD Description
Wiring Device-Kellems Hubbell-PRO 1221I 2-Position General Purpose Industrial Grade Toggle Switch, 120/277 VAC, 20 A, 5540 W
Specifications
| Action |
Positive Snap
|
|---|---|
| Actuator |
Toggle
|
| Amperage Rating |
20
|
| Application |
Light Industrial Grade
|
| Brand Name |
Hubbell
|
| Color |
Ivory
|
| Connection |
Back and Side Wired
|
| Contact_Configuration |
Two Position
|
| Contact_Rating |
Per UL 20
|
| Country of Origin |
CN
|
| Enclosure |
None
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Insulation |
None
|
| Material |
Nylon Toggle/Thermoset Body
|
| Mounting |
Screw
|
| Number_Of_Poles |
1
|
| Operating_Cycles |
50000
|
| Operating_Temperature |
Max Continuous- 75 Degrees C, Minimum- -40 Without Impact
|
| Size |
Standard Sized
|
| Special Features |
Standard Product
|
| Standard |
NEMA WD1, UL20
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
2-Position General Purpose Industrial Grade
|
| Voltage Rating |
120/277
|
| Wattage |
5,540
|
