SolaHD SolaHD E350WB
SolaHD E350WB
Kirby Risk #: 1957003
UPC: 00783472002481, 783472002481, 78347200248
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: SolaHD
Description
Industry Description
Encapsulated Industrial Control Transformer 350VA, Volts Primary: 220x440, 230x460, 240x 480, Volts Secondary: 110, 115, 120, Frequency 50/60 HZ/60 HZ, Secondary Fuse Midget Cartridge, 13/32 IN x 1-1/2 IN
Modified Industry Description
350VA 240/480V PRI 120V SEC FUSED
AD Description

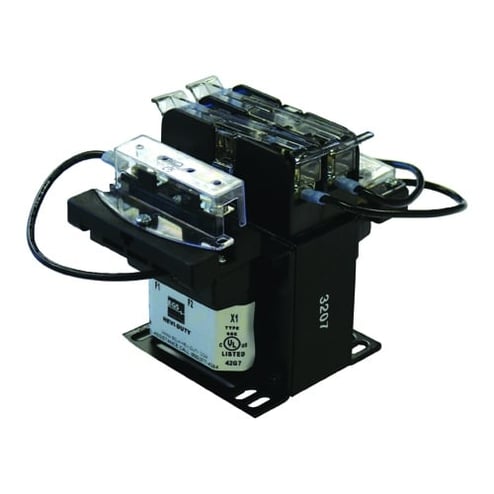

SolaHD E350WB SBE Encapsulated Midget Control Transformer With Finger Safe Cover, 240/480 VAC Primary, 120 VAC Secondary, 0.35 kVA, 50/60 Hz, 1 Phase
Vendor Description
The SBE encapsulated industrial control transformers are epoxy encapsulated to seal the transformer windings against moisture, dirt and industrial contaminants. Extra deep, molded terminal barriers reduce the chance of electrical failure as the result of arcing or frayed lead wires. The rugged construction and proven reliability of the SBE design is uniquely suited for all industrial environments.
Specifications
| Brand Name |
SolaHD
|
|---|---|
| Country of Origin |
VN
|
| Frequency_Rating |
50/60
|
| Insulation |
105
|
| KVA_Rating |
0.35
|
| Mounting |
Heavy Gauge Steel Mounting Plate
|
| Number_Of_Channels |
220 x 440 Volt Primary, 110 Volt Secondary, 50/60 Hz; 230 x 460 Volt Primary, 115 Volt Secondary, 50/60 Hz; 240 x 480 Volt Primary, 120 Volt Secondary, 60 Hz
|
| Phase |
1
|
| Power_Rating |
0.35
|
| Primary_Voltage |
240/480
|
| Secondary_Voltage |
120
|
| Special Features |
|
| Standard |
cULus Listed: E77014, UL 506, CSA C22.2 No. 66, RoHS Compliant
|
| Sub_Brand |
SolaHD
|
| Type |
Encapsulated Midget
|
| Wattage |
300
|
