3M 3M 7622-T-110-3-RJS


Description

Industry Description

3M™ Cold Shrink QT III 7600 T 3 RJS Series Termination Kit includes a non skirted, 3 phase termination. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjunction of high dielectric constant material and sealing compounds allows the termination to withstand voltages of 5 to 35kV.

Modified Industry Description

Indoor 3 Conductor Termination Kit Cables

AD Description

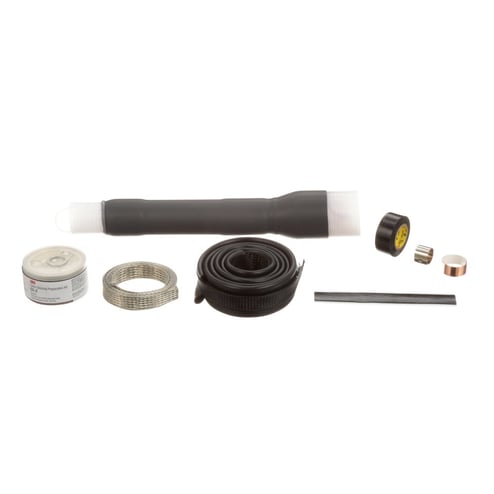

3M™ 054007-04711 7600-T-3-RJS Cold Shrink QT-III Termination Kit, 3 Pieces, For Use With Three Core Tape Shield, Wire Shield and UniShield® Cable, Silicon Rubber, Black

Vendor Description

3M™ Cold Shrink QT-III 7600-T-3-RJS Series Termination Kit includes a non-skirted, 3-phase termination. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjunction of high dielectric-constant material and sealing compounds allows the termination to withstand voltages of 5 to 35 kV.

Specifications

Application
Indoor
Brand Name
3M
Cable_Type
Tape Shield; UniShield(R); Wire Shield
Color
Black
Conductor Size
1/0 AWG; 2/0 AWG; 250 kcmil; 3/0 AWG; 300 kcmil; 350 kcmil; 4/0 AWG; 400 kcmil
Country of Origin
US
Label_Description
3M(TM) COLD SHRINK THREE CONDUCTOR CABLE TERMINATION KIT 7622-T-110-3-RJS,0.70-0.92 IN (17,8-23,4 MM) CABLE INSULATION O.D.
Material
Silicon Rubber
Number_Of_Pieces
3
Operating_Voltage
3
Package_Quantity
1
Special_Features

  • 3 terminal
  • Conductor size by voltage (5 kV) 4/0 AWG to 400 kcmil, (8 kV) 3/0 AWG to 350 kcmil, (15 kV) 1/0 to 4/0 AWG
  • High dielectric constant material regulates the distribution of electric field stress
  • Integrated design allows for easier installation, while sealing compounds provide constant radial pressure
  • Provides a void free seal to tape shield, wire shield and UniShield® power cables
  • UniShield®, wire shield, tape shield shielding type

Standard
AEIC; IEC; JIS
Sub_Brand
3M
Type
Cold Shrink QT-III
Voltage Rating
5k/8k/15k
