O-Z/Gedney O-Z/Gedney 4Q50TG


Description

Industry Description

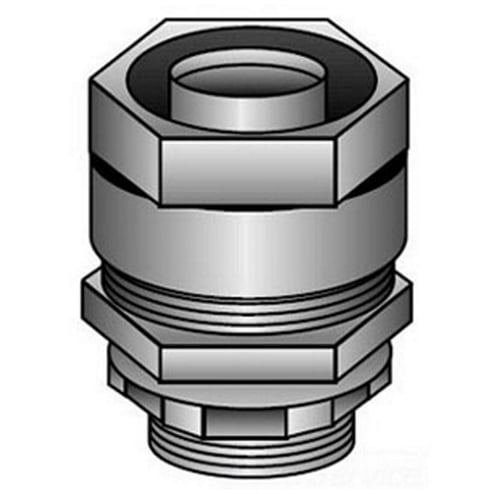

OZ-Gedney Type 4Q-TG Liquid Tight Connector, Size: 1/2 IN, Connection: Tapered MNPT Hub, Malleable Iron Body, Steel Ferrule, Finish: Galvanized Body, Zinc Electroplated Ferrule, NEMA Rating: NEMA 4, Insulated Throat, Wet Location, 1-1/4 IN Width,

Modified Industry Description

1/2 IN STR CONN LFMC GALV

Specifications

Application
For Liquidtight Flexible Metal Conduit
Connection
Tapered MNPT Hub
Country of Origin
MX
Dimensions
1-1/2 in H x 1-1/4 in W
Environmental_Conditions
Wet Location
Finish
Galvanized
Insulation
Insulated Throat
Length1
6.9000
Material
Malleable Iron
NEMA_Rating
NEMA 4
Series
4Q-TG
Size
1/2
Special Features

  • Bonding wedge locknuts are recommended in hazardous locations
  • Compact, slim diameter with small turning radius
  • Inspection windows in ferrule to ensure full conduit engagement
  • Intrinsically safe
  • Long ferrule prevents pullout and tight bend conduit "pop-out"
  • Reusable ferrule
  • Suitable for use in locations exposed to highly corrosive fumes and liquids
  • Suitable for wet locations
  • Tapered threaded male NPT hub
Standard
Third Party Certification: UL File Number 11853, CSA 9795, Applicable Third Party Standards: UL 514B, CSA C22.2 No.18, Federal Specification W-F-406E, NEMA : FB-1, Class I, Division 2 Per NEC 501.4(B), Class I, Zone 2 Per NEC 505.15(C)(2), Class II, Division 1 Per NEC 502.4(A)(1)(e), Class II, Division 2 Per NEC 502.4(B)(2), Class III, Division 1 Per NEC 503.3(A)(2), Class III, Division 2 Per NEC 503.3(B), Intrinsically Safe Per NEC 504.20
Type
Concretetight Liquidtight Oiltight Raintight
