3M 3M MNU14-187DFIX
3M MNU14-187DFIX
Kirby Risk #: 1953406
UPC: 051128587874, 00051128587874, 05112858787
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: 3M
Description
Industry Description

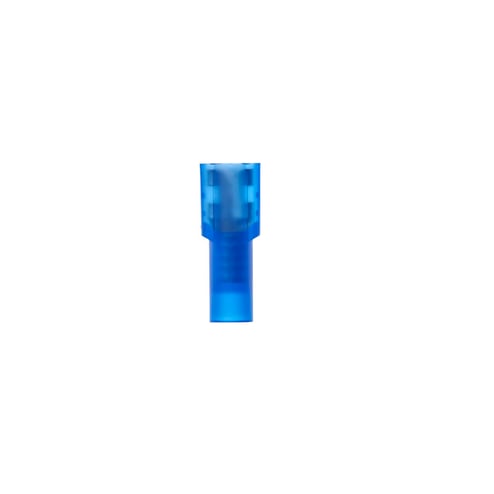

3M™ Scotchlok™ Color-Coded Female Disconnect Terminal has dents and rolled edges to offer superior holding force while allowing for quick and easy disconnect. The terminal has a fully insulated, nylon, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.
Modified Industry Description
Fully Nylon Insulated Butted Seam
AD Description
Scotchlok™ MNU14-187DFIX Disconnect Tab, 16 to 14 AWG Conductor, 3/16 in Tab, 0.085 in ID Butted Barrel, ETP Copper, Blue, Insulated
Specifications
| Brand Name |
3M
|
|---|---|
| Color |
Blue
|
| Conductor Size |
16 to 14 AWG
|
| Country of Origin |
US
|
| Label_Description |
FEMALE DISCONNECT NYLON INSULATED, 100/BOTTLE
|
| Material |
ETP Copper
|
| Operating_Voltage |
100 per bottle
|
| Package_Quantity |
100
|
| Special Features |
|
| Standard |
UL and CSA
|
| Sub_Brand |
3M
|
| Tab_Size |
3/16 in
|
| Terminal_Size |
16 - 14 AWG
|
| Type |
Disconnect
|
| Voltage Rating |
600 VAC
|
