3M 3M M4-38RX
3M M4-38RX
Kirby Risk #: 1949138
UPC: 00051128587034, 051128587034, 05112858703
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: 3M
Description
Industry Description

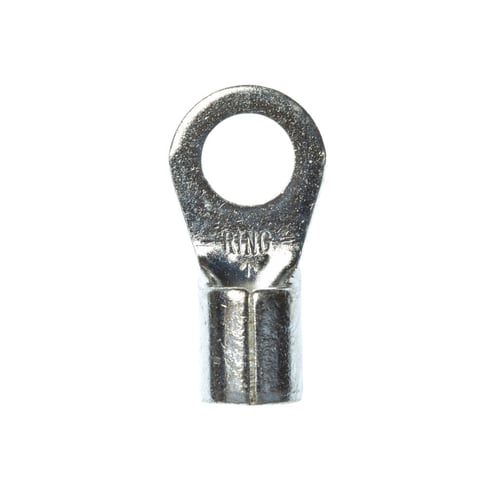

3M™ Scotchlok™ Ring Tongue Terminal ensures an optimum fit while offering reliable and safe performance. The non-insulated, brazed-seam barrel has a beveled mouth that guides the wire into position, and it withstands a maximum temperature of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
Modified Industry Description
Non-Insulated Brazed Seam Ring
AD Description
Scotchlok™ 051128-58703 Standard Ring Tongue Terminal, 4 AWG Conductor, 1.34 in L, 0.28 in ID Brazed Barrel, ETP Copper, Yellow
Specifications
| Brand Name |
3M
|
|---|---|
| Color |
Yellow
|
| Conductor Size |
4 AWG
|
| Country of Origin |
USA
|
| Label_Description |
RING NON-INSULATED, 10/BOTTLE
|
| Material |
ETP Copper
|
| Operating_Voltage |
10 per bottle
|
| Package_Quantity |
10
|
| Special Features |
|
| Standard |
UL and CSA
|
| Stud_Size |
3/8 in
|
| Sub_Brand |
3M
|
| Terminal_Size |
4 AWG
|
| Type |
Standard
|
| Voltage Rating |
600 to 1000 VAC
|
