Allen-Bradley Allen-Bradley 1492-L3Q-BL
Allen-Bradley 1492-L3Q-BL
Kirby Risk #: 1948686
UPC: 662073054917, 00662073054917, 10662073054914, 66207305491
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Allen-Bradley
Description
Industry Description

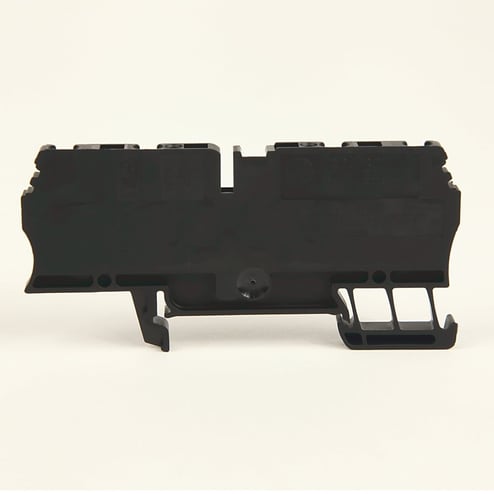

Terminal Block, Spring Clamp Connection, Feed Through with 3 Connection Points 2 on One Side, 5.1 x 79 x 31.3mm (0.20 x 3.11 x 1.23 in), 1 Pole, Black0, VOLTAGE RATING UR - 600V AC/DC, CSA - 600V AC/DC, IEC - 800V AC/DC, ATEX - 550V AC/
Modified Industry Description
5.1 X 79 X 31.3 MM BLACK 1 POLE TERMINAL BLOCK, Spring Clamp Connection, Feed Through w/ 3 Connection Points 2 on One Side
Specifications
| Amperage Rating |
21/24/25/27
|
|---|---|
| Brand Name |
Allen-Bradley
|
| Color |
Black
|
| Conductor Size |
UR - #30...12 AWG, CSA - #26...12 AWG, IEC - 2.5mm², ATEX - #20...12 AWG
|
| Country of Origin |
DE
|
| Special Features |
Spring Clamp Connection, Feed Through with 3 Connection Points 2 on One Side, 1 Pole, Black, Pkg. Qty. of 100
|
| Standard |
UL,CSA,CE,CUL,MARINE,
|
| Sub_Brand |
Allen-Bradley
|
| Terminal_Size |
5.1 x 79 x 31.3mm (0.20 x 3.11 x 1.23 in)
|
| Type |
IEC Spring Clamp Terminal Block
|
| Voltage Rating |
550/600/800//550/600/800
|
