Thomas & Betts Thomas & Betts 204210-1
Thomas & Betts 204210-1
Kirby Risk #: 1939259
UPC: 786210867724, 30786210867725, 78621086772
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Thomas & Betts
Description
Industry Description
Insulation Piercing Magnet Wire Ring Terminal, Length 1.58 Inches, Width .81 Inches, Length of Teeth .61 Inches, Width of Teeth .53 Inches, Stud Size 1/4 Inch, Wire Range #12 AWG - #4 AWG 10,380 Circular Mil Area - 52,480 Circular Mil Area, Copper Alloy, Tin Plated
Modified Industry Description
CONN. INSULATION PRC RING 1/4 STUD
AD Description

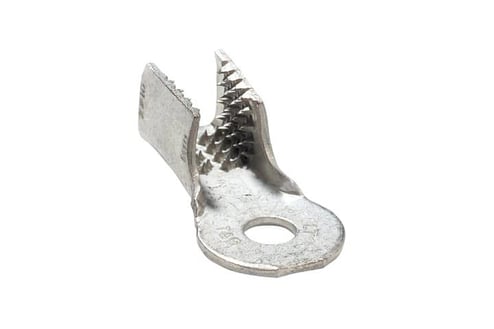

Dragon Tooth® 204210-1 Insulation Piercing Magnet Wire Ring Terminal, 12 to 4 AWG Conductor, 1.58 in L, Copper
Vendor Description
Dragon Tooth® magnet wire connectors penetrate the insulation and oxide layers to make electrical contact on magnet wiring. The result is permanent, low resistance electrical connections, capable of maintaining contact integrity throughout the life of the connection.
Specifications
| Application |
For aluminum to copper, aluminum to aluminum or copper to copper magnet wire connections.
|
|---|---|
| Brand Name |
Thomas & Betts
|
| Conductor Size |
12 to 4
|
| Country of Origin |
US
|
| Finish |
Tin Plated
|
| Material |
Copper
|
| Package_Quantity |
100
|
| Special Features |
|
| Standard |
UL E9809
|
| Sub_Brand |
Dragon Tooth
|
| Type |
Insulation Piercing Magnet Wire
|
| Voltage Rating |
600
|
