Dual-Lite Dual-Lite LM40-12V
Dual-Lite LM40-12V
Kirby Risk #: 1937718
UPC: 78252084381, 00782520843816, 782520843816
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Dual-Lite
Description
Industry Description
LM Series, Battery Type: Lead Calcium, Color: White, Number of Lamps: 2, Lamp Type: PAR 36, Voltage Rating: 120/277 VAC, Wattage: 40 W.
Modified Industry Description
EM LTG UNIT 12V 40W MAINT FREE BATT
AD Description

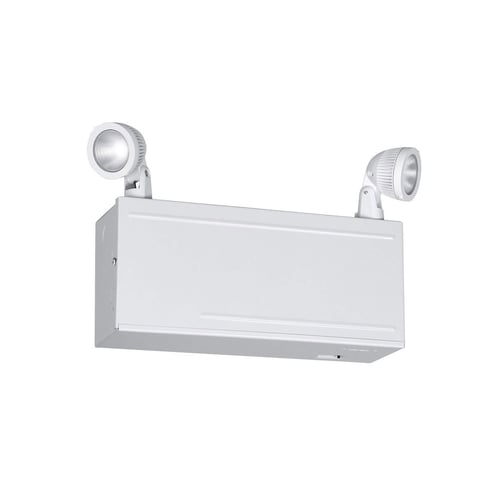

Dual-Lite® LM40-12V High Capacity Emergency Lighting Fixture, 40 W PAR36 Incandescent Lamp, 120/277 VAC, 2 Heads, Steel
Vendor Description
Dual voltage input of 120/277 VAC 60 Hz. Includes a fully automatic constant voltage, current limited charger with transformer isolation and low battery voltage disconnect. Transfer contact through electric relay. Power distribution made with fused leads through internally located distribution board. Maximum power consumption of 20 W (all models). Test initiated by means of integral test switch. AC-on indicated by LED. AC lock out provision prevents discharge of battery at installation until power is present.
Specifications
| Application |
Corrosion-resistant, rugged metal units featuring remote capacity, fully adjustable lighting heads and easy installation. Available in standard and damp location models.
|
|---|---|
| Battery |
Lead-Calcium
|
| Brand Name |
Dual-Lite
|
| Color |
White
|
| Country of Origin |
CN
|
| Environmental_Conditions |
Conditioned Space
|
| Fixture_Type |
High Capacity Emergency Light
|
| Lamp_Type |
PAR36 Incandescent
|
| Lamp_Wattage |
40
|
| Material |
Steel
|
| Mounting |
Universal wall mounting pattern
|
| Number_Of_Lamps |
2
|
| Output |
12VT
|
| Power_Source |
Lead Calcium Battery
|
| Size |
13.5000 in X 3.8750 in X 11.5000 in
|
| Special Features |
|
| Standard |
UL 924 Listed (optional damp location listed)
|
| Sub_Brand |
Dual-Lite
|
| Type |
High Capacity
|
| Voltage Rating |
120/277
|
| Wattage |
40Watts
|
| Width_2 |
7.1250
|
