O-Z/Gedney O-Z/Gedney BLG2022


Description

Industry Description

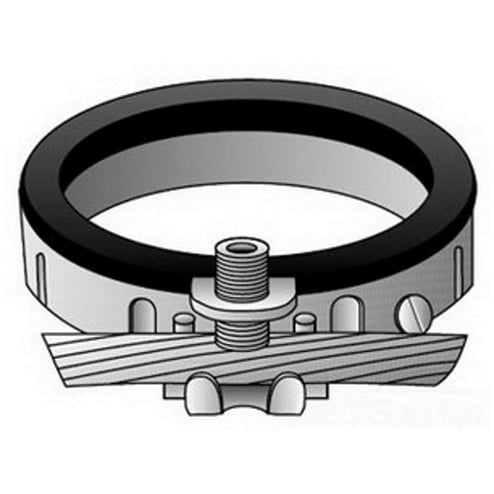

OZ-Gedney Type BLG Insulated Grounding Bushing, Size: 2 IN, Malleable Iron Body, Stainless Steel Screws, Finish: Zinc Plated, Connection: Set-Screw, 150 DEG C, 2-3/4 IN Outside Diameter, 7/8 IN Width, 8 - 2/0 AWG Grounding Wire, 2-1/4 IN Turning

Modified Industry Description

2 IN INSUL GNDG BSHG

Specifications

Application
For Threaded Rigid Conduit, IMC And EMT Conduit
Connection
Set-Screw
Country of Origin
MX
Dimensions
2-3/4 in Dia x 7/8 in W
Finish
Zinc Plated
Length1
7.5000
Material
Malleable Iron
Size
2
Special Features

  • Allows easy insertion of grounding conductor for through or end connection
  • Low grounding connector profile
  • Lugs not sold separately
  • O-Z/Gedney specification grade insulated bushings provide a grounding lug to allow for grounding of conduit through the insulated bushing
  • Phenolic insulation, with 150 deg C UL rating, molded on over metallic conduit stop will not shatter or shrink at sub-zero temperatures
  • Protects insulated conductors from abrasion during pulling and mechanical vibration
  • Provides voltage gradient between line conductors and ground at point of electrical and mechanical stress on conductor insulation
  • Set screw provides fixed alignment and positive ground continuity
  • Spring action design maintains positive firm contact on grounding conductor
  • Tin plated copper saddle for use with copper or aluminum conductors from 8 to 4/0 AWG
  • Type BLG insulated lay-In-lug grounding bushings with tin plated copper grounding path shall be used on all feeder raceways and bushings
Standard
Third Party Certification: UL File Number E-24264, CSA 015978, Applicable Third Party Standards: UL 514B, 467, 468, CSA C22.2 No.41, Federal Specification W-F-408E, NEMA : FB-1
Temperature_Rating
150
Type
Type BLG
