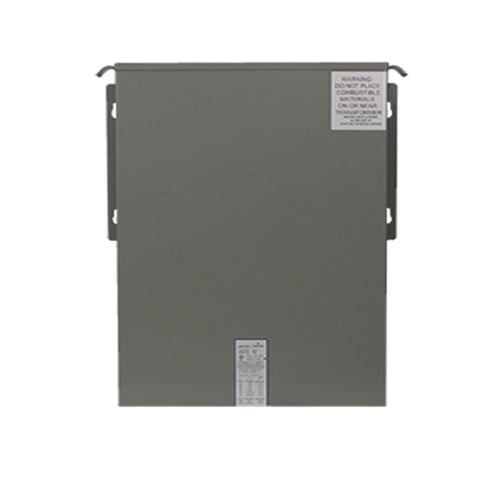

SolaHD Solahd HS14F75BS


Description

Industry Description

7.5 kVA, Primary A: 34.1/17.0, Secondary A: 68.2/34.1, Primary V:190/200/208/220/380/400/415/440, V Secondary:110/220, Primary V:200/208/230/400/415/460, V Secondary:115/230, V Primary:208/240/415/480, V Secondary:120/240, requency: 60HZ, 1 Phase

Specifications

Application
SolaHD encapsulated transformer rated for harsh industrial environments
Country of Origin
US
Enclosure
NEMA 3R, Class 1 Div 2 Group A,B,C and D
Length1
16.0000
Special Features

  • 0.5 to 45 kVA units are encapsulated with electrical grade silica and epoxy for industrial applications
  • 190/200/208/220/380/400/415/440 VAC primary, 110/220 VAC secondary, 200/208/230/400/415/460 VAC primary, 115/230 VAC secondary, 208/240/415/480 VAC primary, 120/240 VAC secondary voltage
  • Conduit knockouts for side entry in to wiring compartment
  • Copper lead wire terminations
  • Electrostatically shielded for quality power on sizes 1 kVA and larger
Standard
cULus Listed: E25872, E77014, UL 1561 or UL 506, CSA C22.2 No. 47 or No. 66
Temperature_Rating
115
Type
Automation Transformers - Non-Ventilated 50 VA to 45 kVA
Wattage
7.5
