Allen-Bradley Allen-Bradley 1492-JD3-G
Allen-Bradley 1492-JD3-G
Kirby Risk #: 1918150
UPC: 662073058724, 10662073058721, 66207305872, 00662073058724
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Allen-Bradley
Description
Industry Description

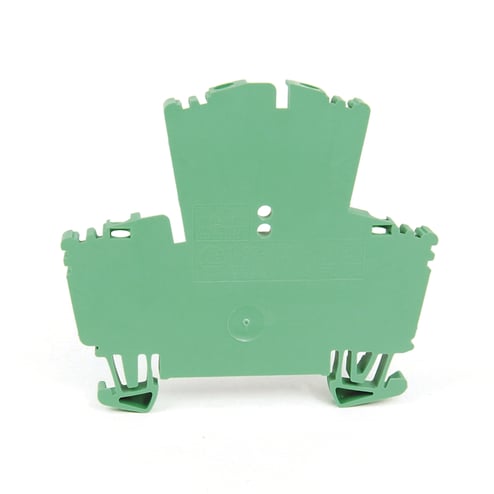

Terminal Block, Screw Connection, Feed Through, Two Level - Two Circuit, 5.1 x 69 x 55.5mm (0.20 x 2.72 x 2.19 in), 1 Pole, Green0, VOLTAGE RATING UR - 600V AC/DC, CSA - 300V AC/DC, IEC - 400V AC/DC, ATEX - 275V AC/DC, MAXIMUM CURRENT RA
Modified Industry Description
5.1 X 69 X 55.5 MM GREEN 1 POLE TERMINAL BLOCK, FEED THROUGH, TWO LEVEL - TWO CIRCUIT
Specifications
| Amperage Rating |
10/20/21/24
|
|---|---|
| Brand Name |
Allen-Bradley
|
| Color |
Green
|
| Conductor Size |
UR - #22...12 AWG, CSA - #26...12 AWG, IEC - 2.5mm², ATEX 20...14AWG
|
| Country of Origin |
DE
|
| Special Features |
Screw Connection, Feed Through, Two Level - Two Circuit, 1 Pole, Green, Pkg. Qty. of 100
|
| Standard |
UL,CSA,CE,CUL,MARINE,KC
|
| Sub_Brand |
Allen-Bradley
|
| Terminal_Size |
5.1 x 69 x 55.5mm (0.20 x 2.72 x 2.19 in)
|
| Type |
IEC Screw Multi Circuit Terminal Block
|
| Voltage Rating |
275/300/400/600//275/300/400/600
|
