NSI NSi ITG-6
NSI ITG-6
Kirby Risk #: 1917944
UPC: 662381951403, 662381970565, 66238195140, 00662381951403
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: NSI
Description
Industry Description

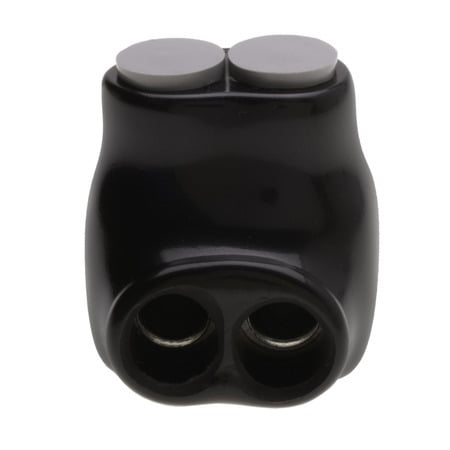

2Wire Polaris Grey Insulated Connector for6-14 AWG Fine-Stranded Flexible Copper Conductors Polaris GreyInsul-Tap Connectors are suitable for connectingtwo wires, designed for use with fine-stranded flexible copper conductors.Excellent for use in motor connect/disconnect applications. Abrasion and chemical resistant. Will not support combustion. Cold temperature rated to -45 degrees Celsius, rated 600 volts.
Modified Industry Description
6 TO 14 AWG Polaris Grey For Fine STRANDED COPPER Conductor, 2 Port
AD Description
NSI Polaris™ ITG-6 Insulated Multi-Tap Connector, 14 to 6 AWG (Class B, C, D)/14 to 6 AWG (Class K, M, I) Copper Conductor, Plastisol
Vendor Description
Perfect for motors. Polaris™ Gray provides the unique ability to connect or terminate fine stranded, flexible, and ultra-flexible copper cable whenever maintenance or repair are required. With an integral sleeve that protects fine strands and reduces stress on the conductor, you can connect, disconnect and reconnect with ease.
Specifications
| Application |
Wire Termination
|
|---|---|
| Brand Name |
NSi
|
| Cable_Entry |
1 Side Entry
|
| Color |
Gray
|
| Conductor Type |
Copper
|
| Conductor Size |
14 to 6 AWG (Class B, C, D)/14 to 6 AWG (Class K, M, I)
|
| Country of Origin |
USA
|
| Finish |
Gray
|
| Material |
Plastisol
|
| Maximum_Wire_Gauge |
6
|
| Minimum_Wire_Gauge |
14
|
| Model |
ITG
|
| Number_Of_Poles |
1
|
| Number_Of_Ports |
2
|
| Package_Quantity |
1
|
| Size |
L=1.130 - W=1.240 - H=1.370
|
| Special Features |
|
| Standard |
cULus
|
| Sub_Brand |
NSi
|
| Temperature_Rating |
-45 to 90
|
| Type |
Insulated
|
| Voltage Rating |
600
|
| Wire_Type |
B,C,D,K,M,I
|
