Hubbell Hubbell HBL223MM

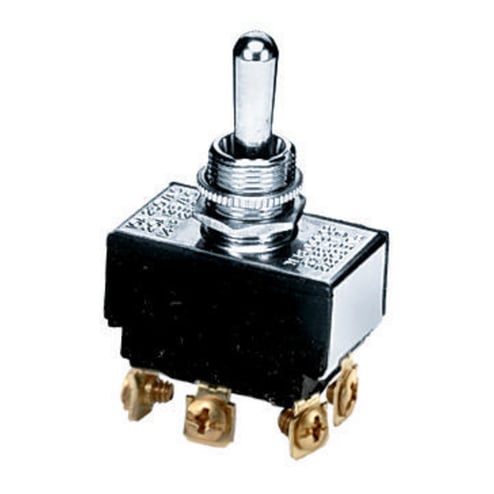

Hubbell HBL223MM
Kirby Risk #: 1917067
UPC: 783585313177, 00783585313177, 78358531317
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Hubbell
Description
Industry Description
Hubbell Wiring Device Kellems, Switches and Lighting Controls,Commercial Grade, Panel Mount and Specialty Switches, Bat HandleSwitches, Momentary Double Pole DoubleThrow Center Off 10A 250V/10A125V, Screw Terminals, Nickel Plated Brass
Modified Industry Description
DPDT MOM ON/OFF/MOM ON BAT HANDLE
AD Description
Wiring Device-Kellems HBL223MM 3-Position Commercial Grade Heavy Duty Standard Toggle Switch, 250/125 VAC, 10/20 A, 2500 W, 1-1/2 hp, DPDT
Specifications
| Actuator |
Bat Handle
|
|---|---|
| Amperage Rating |
10/20
|
| Application |
2-Circuit On/Off/On
|
| Brand Name |
Hubbell
|
| Color |
Metallic
|
| Connection |
Screw Terminal
|
| Contact_Configuration |
Momentary
|
| Contact_Rating |
As Indicated
|
| Country of Origin |
CN
|
| Environmental_Conditions |
Indoor Dry unless Protected by Additional Means
|
| Indicator |
Comes with Indicator Plate
|
| Interrupt_Rating |
10A 250V AC, 20A 125V AC
|
| Material |
Metallic
|
| Mounting |
Panel Mount
|
| Number_Of_Poles |
2
|
| Operating_Cycles |
Not Rated
|
| Operating_Temperature |
Maximum continuous 75°C and minimum -40°C without Impact
|
| Size |
2.27 X 0.76 X 1.3
|
| Special Features |
|
| Standard |
UL Listed
|
| Sub_Brand |
Hubbell Wiring Device-Kellems
|
| Type |
Momentary
|
| Voltage Rating |
250/125
|
| Wattage |
2,500
|
