3M 3M 31178
3M 31178
Kirby Risk #: 1915513
UPC: 05400700907, 054007009078, 00054007009078
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: 3M
Description
Industry Description

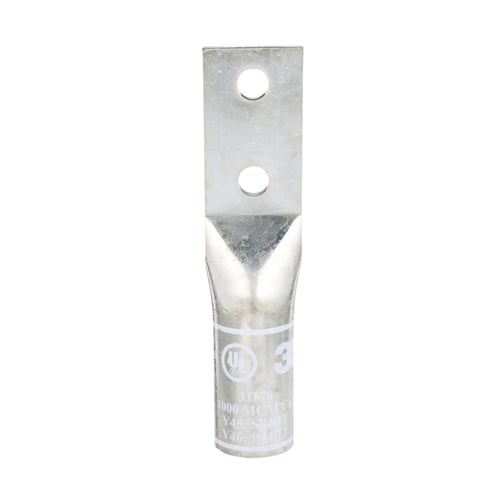

3M™ Scotchlok™ 31100 2 Hole Compression Lug is for use with copper conductors only. The seamless copper construction offers high conductivity and a tin plated finish resists corrosion. It is rated for 35 kV voltage applications.
Modified Industry Description
Copper Two-Hole Long-Barrel Lug
AD Description
Scotchlok™ 31178 2-Hole Compression Lug, 1000 kcmil Conductor, 1/2 in Stud, Copper
Specifications
| Application |
Copper Conductor Only
|
|---|---|
| Brand Name |
3M
|
| Capacity |
2
|
| Color |
White
|
| Conductor Material |
Copper
|
| Conductor Size |
1000 kcmil
|
| Country of Origin |
CL
|
| Label_Description |
3M(TM) SCOTCHLOK(TM) COPPER TWO HOLE LONG BARREL LUG 31178, 1000 KCMIL, 6 PER CASE
|
| Material |
Copper
|
| Number_Of_Holes |
2
|
| Package_Quantity |
6
|
| Special Features |
|
| Standard |
UL Listed
|
| Stud_Size |
1/2 in
|
| Sub_Brand |
3M
|
| Type |
2-Hole
|
| Voltage Rating |
35 kV
|
