Siemens Siemens DTNF362

Industry Description

Siemens Low Voltage Circuit Protection Heavy Duty Safety Switches. 60A 3P 600V 3W NF DT TYPE 1

Modified Industry Description

0A 3P 600V 3W NF DT TYPE 1

AD Description

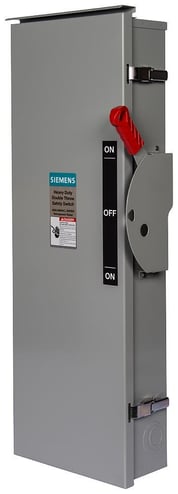

Siemens DTNF362 Enclosed Heavy Duty Non-Fused Safety Switch, 600 VAC, 60 A, 60 hp, TPDT Contact, 3 Poles

Vendor Description

Double throw safety switches are intended to transfer loads from one power source to another. all 2 and 3-pole double throw switches are suitable for use as service equipment. all are UL listed. switches are rated for use on systems up to 10000 A when protected with class H fuses or 100000 A when protected with class R or class T fuses. they can also be used to connect a single source of power to either of two loads. in this application it is necessary to field modify fusible switches so that the fuses are on the load side of the switching mechanism. A cover interlock is provided on all amperage ratings. the operating handle may be padlocked in the off position.
