3M 3M 8461


Description

Industry Description

3M™ 8459 Cold Shrink Shield Adapter Kit is designed to provide sealing and grounding applications on longitudinally corrugated, conventional tape, wire and UniShield® power cables. It is rated for 5 to 8 kV and 600 amps cables. This kit offers resistance to acids, alkalis, ozone, ultraviolet light and fungus.

Modified Industry Description

Shield Adapter Kit

AD Description

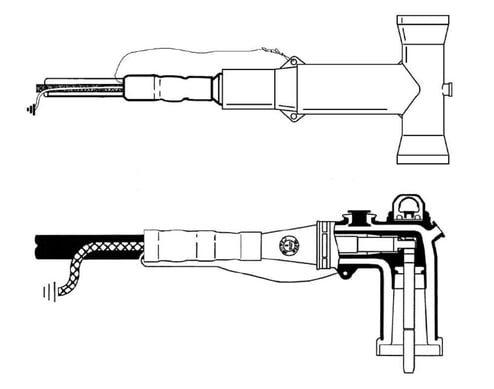

3M™ 054007-41459 Cold Shrink Shield Adapter Kit, For Use With 200 A Load Break Elbows, Up to 600 A Dead Front Modular, Cable Jackets and Semi-Conducting Insulation Shields, Black

Vendor Description

3M™ 8459 cold shrink shield adapter kit is designed to provide sealing and grounding applications on longitudinally corrugated, conventional tape, wire and UniShield® power cables. It is rated for 5 to 8 kV and 600 A cables. This kit offers resistance to acids, alkalis, ozone, ultraviolet light and fungus. 3M™ 8459 cold shrink shield adapter kit includes (1) cold shrink sealing tube, (3) mastic sealing strips, (1) constant force spring, (1) pre-formed unique, integrated ground braid/bleeder wire, (1) strip semi conductive tape and (1) instruction sheet. It is compatible with semi conducting insulation shields and cable jackets. This flexible adapter kit maintains the pressure even after years of aging and exposure. It is water-resistant, making it ideal for use with loadbreak elbows and dead front modular splices and other accessories.

Specifications

Application
designed for grounding and sealing Tape Shielding, Wire Shielding, Unishield® shielded power cables when using cable accessories such as elbows, modular splices and terminations
Brand Name
3M
Country of Origin
US
Label_Description
3M(TM) COLD SHRINK SHIELD ADAPTER KIT 8461, 1.27-2.17 IN (32,3-55,1 MM) JACKET O.D. RANGE
Package_Quantity
3
Special Features

  • 1000 kcmil, 2/0 AWG, 250 kcmil, 3/0 AWG, 300 kcmil, 350 kcmil, 4/0 AWG, 400 kcmil, 450 kcmil, 500 kcmil, 600 kcmil, 700 kcmil, 750 kcmil, 800 kcmil and 900 kcmil conductor
  • 500 to 1000 kcmil at 5/8 kV, 350 to 1000 kcmil at 15 kV, 350 to 750 kcmil at 25 kV and 2/0 AWG to 350 kcmil 35 kV conductor
  • Accommodates a wide range of cable sizes
  • Adapter bleeder wire offers quick and simple installation when soldered to the ground braid
  • No torch or heat required
  • Resists acids and alkalies
  • Resists fungus
  • Resists ozone and ultraviolet light
  • Seals tight, retains its resiliency and pressure even after years of aging and exposure
  • Splices tape shield, wire shield and UniShield® cables
  • Water-resistant
Sub_Brand
3M
Type
Cold Shrink Shield Adaptor Kit
