Thomas & Betts Thomas & Betts T37CG-TB


Description

Industry Description

1 Inch Form 7 (T) Pre-Assembled Conduit Body, Cover and Gasket, Body Material Gray Iron/Zinc Plating and Baked On Epoxy Powder Coat with BlueKote Internal Coating, Cover Material and Finish Stamped Steel/Zinc Plating, Neoprene Gasket

Modified Industry Description

TC T37CGTB

AD Description

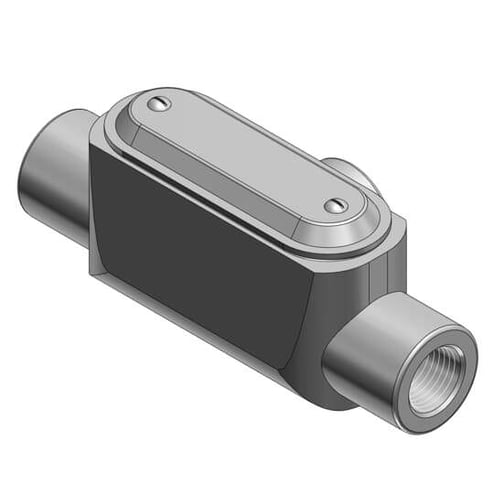

T&B® BlueKote® T37CG-TB Type T Pre-Assembled Conduit Body With Cover and Gasket, 1 in Hub, 7 Form, 16.9 cu-in Capacity, Iron, Epoxy Powder Coated/Zinc Plated

Vendor Description

For over 100 years the T&B® brand has been recognized as the leading brand of electrical fittings. Industry standards such as Liquidtight® fittings, Erickson® couplings and many others are registered trade marks. The innovation continues with numerous products and features for both ordinary and hazardous locations.

Specifications

Application
Conduit bodies are installed in conduit systems to connect sections, act as pull outlets when conductors are being installed and provide easy access for splices in branch conductors.
Brand Name
Thomas & Betts
Configuration
T
Country of Origin
CN
Finish
Zinc Plated/Epoxy Powder Coated
Form
7
Hub_Size
1
Material
Gray Iron
Special Features

  • Act as pull outlets when conductors are being installed and provide easy access for splices in branch conductors
  • Bluekote® teflon based internal finish provides a slick, easy glide internal surface which significantly lowers the amount of force necessary to pull wires
  • Bodies are designed with a flat back, allowing more cubic inch capacity
  • Conduit bodies make 90 deg bends in conduit runs, act as mounting outlets for wiring devices and lighting fixtures and to provide access to conductors for maintenance and future system changes
  • Connect conduit sections
  • Eliminates rough internal surfaces that can cut into cable jacket, insulation and conductors during pulling and also reduces installation time and risk of installer strain
  • T&B® Form 7™ bodies and covers are interchangeable with Crouse-Hinds and Appleton® Form 7™ bodies and covers
  • Triple layer protection including two layers of epoxy coating which stops corrosion in its tracks
Standard
E 2969
Sub_Brand
Thomas & Betts
Trade_Size
1
Type
Type T Pre-Assembled
Width_2
6.7500
