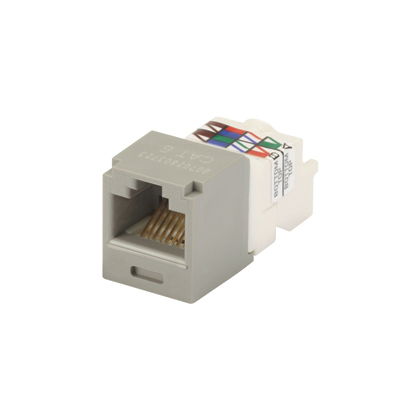

Panduit Pan-Net Panduit Pan-Net CJ688TPIG


Description

Industry Description

Category 6, 8 position, 8 wire universal module. International Gray.

Modified Industry Description

Mini-Com Module, Cat 6, UTP, 8 pos

AD Description

Panduit® TX6™ PLUS CJ688TPIG 8-Position 8-Wire RJ45 Universal TP Style UTP Jack Module, Cat6/Mini-Com® Module, Surface Mount, 1 Port, ABS/Polycarbonate, International Gray

Specifications

Application
Unshielded
Color
International Gray
Country of Origin
USA
Dimensions
0.71 in H x 0.63 in W x 1.43 in D
Length1
3.4500
Material
ABS/Polycarbonate
Mounting_Type
Surface
Special Features

  • Can be clearly identified with optional labels and icons for port identification
  • Confidence that each jack module will deliver the critical electrical performance requirements
  • Controls cable bend radius for long term installed performance
  • Enhanced Giga-TX technology optimizes performance by eliminating conductor untwist and reduces installation time and expense
  • Industry standard interface provides a quick and easy plug and play connection to RJ45 patch cords, backwards compatible
  • Marked with quality control number for future traceability
  • UTP jack modules snap in and out of all Mini-Com® faceplates, modular patch panels and surface mount boxes for easy moves, adds, and changes
Standard
Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS
Sub_Brand
Panduit
Type
8-Position 8-Wire RJ45 Universal TP Style
