Allen-Bradley Allen-Bradley 1492-L4-BL

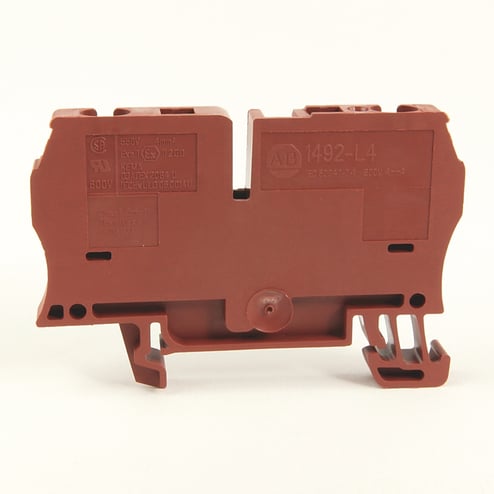

Allen-Bradley 1492-L4-BL
Kirby Risk #: 1896854
UPC: 10662073055096, 662073055099, 66207305509, 00662073055099
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Allen-Bradley
Description
Industry Description
Terminal Block, Spring Clamp Connection, Feed Through, 6.1 x 62 x 35.7mm (0.24 x 2.44 x 1.41 in), 1 Pole, Black, VOLTAGE RATING UR - 600V AC/DC, CSA - 600V AC/DC, IEC - 800V AC/DC, ATEX - 550V AC/DC, MAXIMUM CURRENT RATING UR - 33A, CS
Modified Industry Description
6.1 X 62 X 35.7 MM BLACK 1 POLE TERMINAL BLOCK, Spring Clamp Connection, Feed Through
Specifications
| Amperage Rating |
28/32/33/35
|
|---|---|
| Brand Name |
Allen-Bradley
|
| Color |
Black
|
| Conductor Size |
UR - #26...10 AWG, CSA - #26...10 AWG, IEC - 4mm², ATEX - #20...10 AWG
|
| Country of Origin |
RO
|
| Mounting |
Din Rail
|
| Operating_Voltage |
Two
|
| Special Features |
Spring Clamp Connection, Feed Through, 1 Pole, Black, Pkg. Qty. of 50
|
| Standard |
UL,CSA,CE,CUL,MARINE,KC
|
| Sub_Brand |
Allen-Bradley
|
| Terminal_Size |
6.1 x 62 x 35.7mm (0.24 x 2.44 x 1.41 in)
|
| Type |
IEC Spring Clamp Terminal Block
|
| Voltage Rating |
550/600/800//550/600/800
|
