3M 3M 5637K
3M 5637K
Kirby Risk #: 1896507
UPC: 054007122593, 00054007122593, 05400712259
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: 3M
Description
Industry Description

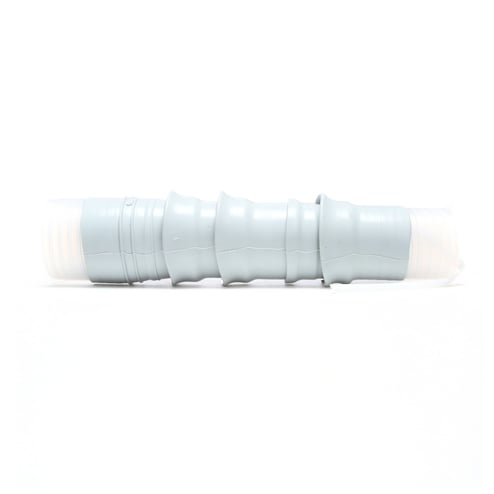

3M™ Cold Shrink QT II 5630K Series Termination Kit includes three 4 skirt, 1 piece terminations. It ensures a pliable, tight seal for tape shield, wire shield and UniShield® power cables. The conjunction of high dielectric constant material and silicone rubber insulation allows the termination to withstand voltages of 5 to 15kV.
Modified Industry Description
Cold Shrink Termination Kit-Skirted
Specifications
| Application |
Outdoor
|
|---|---|
| Brand Name |
3M
|
| Cable_Type |
Tape Shield; UniShield(R); Wire Shield
|
| Conductor Size |
1000 kcmil; 1250 kcmil; 1500 kcmil; 1750 kcmil; 2000 kcmil; 600 kcmil; 700 kcmil; 750 kcmil; 800 kcmil; 900 kcmil
|
| Country of Origin |
US
|
| Label_Description |
3M(TM) COLD SHRINK TERMINATION KIT 5637K, 5 TO 15 KV, 1.30-1.95 IN (33-50 MM) CABLE INSULATION O.D.
|
| Operating_Voltage |
1
|
| Package_Quantity |
1
|
| Special Features |
|
| Standard |
IEEE
|
| Sub_Brand |
3M
|
| Type |
QT-II
|
| Voltage Rating |
5k/8k/15k
|
