Panduit Panduit DNF14-188FIB-C
Panduit DNF14-188FIB-C
Kirby Risk #: 1886762
UPC: 07498375981, 30074983759812, 074983759811, 00074983759811
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Panduit
Description
Industry Description

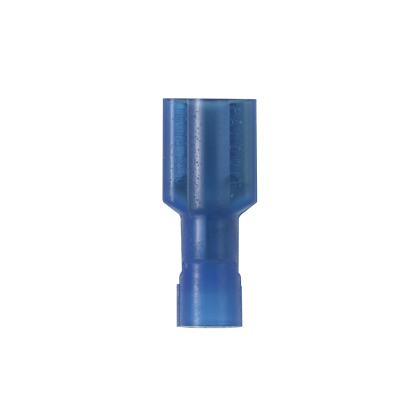

The vibration resistant female disconnect is made of brass and is tin-plated. It is fully insulated in a blue, nylon housing. It has a tab size of 0.187 x 0.020" (4.8 x 0.5 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm²). It is 0.78" (19.8 mm) long and 0.29" (7.4 mm) wide. The disconnect has a funnel entry barrel configuration and a butted seam barrel. It comes in bottles of 100.
Modified Industry Description
Female Disconnect, Nylon Fully Insulated, 16 - 14 AWG, .187 IN x .020 IN Tab Size
AD Description
Panduit® Pan-Term® DNF14-188FIB-C Vibration-Resistant Female Disconnect, 16 to 14 AWG Conductor, 0.187 in W x 0.02 in THK Tab, Butted Seam Barrel, Brass, Blue, Fully Insulated
Specifications
| Color |
Blue
|
|---|---|
| Connection |
Funnel Entry
|
| Conductor Size |
16 to 14
|
| Finish |
Tin Plated
|
| Insulation |
Nylon - Fully Insulated
|
| Material |
Brass
|
| Mounting |
0.28
|
| Standard |
UL 310 Listed
|
| Type |
Fully Insulated Loose Piece Vibration Resistant
|
