Thomas & Betts Thomas & Betts CS61


Description

Industry Description

Aluminum 2 Inch Service Entrance Compression Splice for Wire Range - End A: 8 Str., 6 Sol., Green, End B: 8 Str., 6 Sol., Green, Die: 5/8. For AL-AL or AL-CU Conductors.

Modified Industry Description

ALUMINUM COMPRESSION SLEEVE

AD Description

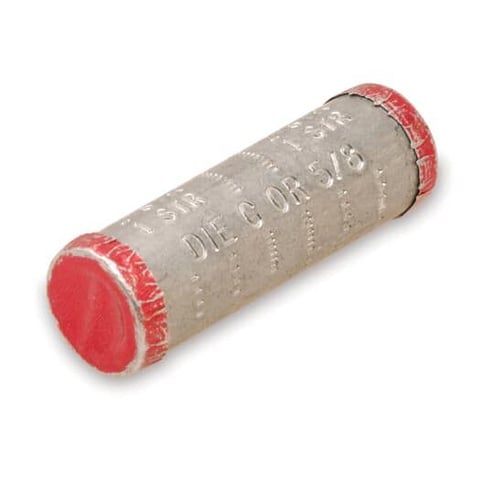

Blackburn® CS61 CS Series Basic Non-Insulated Service Entrance Splice, 8 to 6 AWG Solid/Stranded Conductor, Die Code: 5/8, 2 in L, Aluminum

Vendor Description

Blackburn® stands for quality and reliability as a supplier of materials to connect overhead distribution power lines and equipment.

Specifications

Application
Basic, uninsulated Splices for Service Entrances. For Combinations of Aluminum-to-Aluminum or Aluminum-to-Copper Conductors.
Brand Name
Thomas & Betts
Color
Green
Conductor Range
Wire Range - End A: 8 Stranded, 6 Solid, Green, End B: 8 Stranded, 6 Solid, Green,
Connection
Compression
Conductor Size
8 to 6
Country of Origin
MX
Environmental_Conditions
All Seasons / Conditions
Insulation
None
Material
Aluminum
Mounting
None
Special Features

  • 8 AWG stranded, 6 AWG solid end A and 8 AWG stranded, 6 AWG solid end B conductor
  • All seasons environmental conditions
  • All splices are Color coded and marked with strip lengths, installation die codes and compression locations providing easy identification for easy installation
  • Complies with ANSI C119.4 when properly installed on aluminum-to-aluminum or aluminum-to-copper conductors
  • Constructed from aluminum for high conductivity
  • Prefilled with oxide-inhibitor to prevent oxidation and keep out moisture
  • Solid center barriers and large chamfers for easy cable insertion
  • U-BG B58CS, 52 hydraulic dies, 5/8 (OD58 tool) peach, BG, G, TU mechanical dies
Standard
RUS Accepted. Complies with ANSI C119.4 when properly installed on Aluminum-to-Aluminum or Aluminum-to-Copper Conductors.
Sub_Brand
Blackburn
Type
Basic Non-Insulated
Width_2
5.2500
Width_3
5.2500
