Appleton Appleton EDKB12


Description

Industry Description

Contender EDKB Series 2 Circuit Selector Switch With Cover, Number Of Steps: 2, Contact Configuration: 1 NO/1 NC, Contact Rating: 10 AMP At 600 VAC, Enclosure: NEMA 3, 7CD, 9EFG, Mounting: Surface Mount With 1/2 IN NPSM, Operation: Momenta

Modified Industry Description

SELECT-SW W/CVR

AD Description

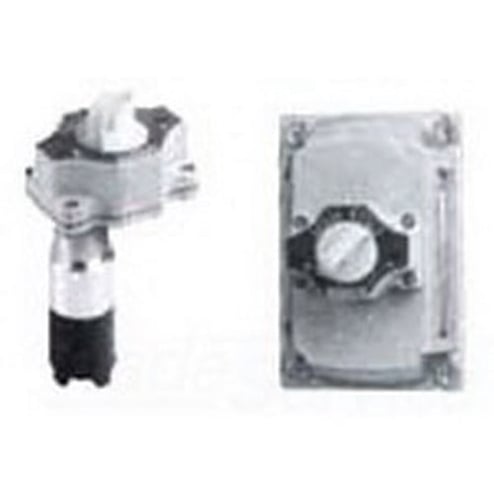

Appleton® EDKB12 2-Circuit Selector Switch Assembly With Cover, 600 VAC, 10 A, 1NO/1NC Contact

Vendor Description

Appleton® explosionproof, dust-ignitionproof Contender™ Series factory sealed control stations confine the arcing of devices within the enclosure, preventing ignition of ignitable atmospheres during control operation of motors and other equipment. A variety of push buttons and selector switches are available for use in conjunction with contactors or magnetic starters for remote control of motors. They provide circuit control and/or selection. Pilot lights are available to provide visual assurance that an electrical function is being performed at a remote or local location. Contender™ Series control stations are designed for use in classified areas where flammable vapors, gases or highly combustible dusts are present.

Specifications

Amperage Rating
10
Application
For Conjunction With Contactors Or Magnetic Starters For Remote Control Of Motors
Country of Origin
MX
Enclosure
NEMA 3, 7CD, 9EFG
Finish
Natural
Length1
6.2000
Material
Aluminum
Mounting
Surface Mount With 1/2 IN NPSM
Mounting_Type
Surface
Series
EDKB
Special Features

  • Accurately tapped, tapered hubs for tight, rigid joints and ground continuity
  • Copperfree (4/10 of 1% maximum) aluminum operator mechanism, nylon cam and sealed phenolic contact block
  • Pushbutton and selector switch contacts are silver cadmium oxide which are "sealed" in lower phenolic chamber isolated from corrosive elements
  • Smooth, rounded integral bushing in each hub protects conductor insulation
  • Stainless steel pushbutton shaft operates within stainless steel bushing assuring long, maintenance free operation
Standard
UL 508, UL 698, UL 1203, E10449, E81751 UL Listed, Class I, Division 1, Groups C, D , Class I, Division 2, Groups B, C, D, Class II, Division 1 And 2, Groups E, F, G And Class III
Sub_Brand
Appleton
Type
2-Circuit
Voltage Rating
600
