Thomas & Betts Thomas & Betts 54484


Description

Industry Description

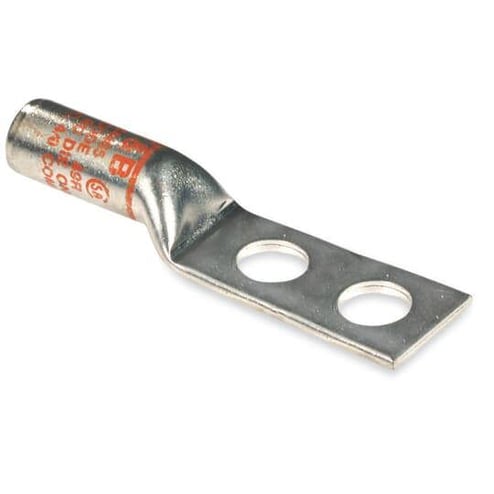

Copper Two-Hole High Voltage Lug, Long Barrel, Blind End, Max 15kV, Wire Size 500 kcmil, 1/2 Inch Bolt Size, 1-3/4 Inch Hole Spacing, Tin Plated, Die Code 87R, Die Color Code Purple Rounding

Modified Industry Description

COPPER LUG

AD Description

Color-Keyed® 54484 54400 2-Hole High Voltage Compression Lug, 500 kcmil Copper Conductor, Die Code: 87R, 1-3/4 in Stud, Copper

Vendor Description

The Color-Keyed® compression system ensures a proper crimp onto the conductor by matching the right connector to the right tool and die, using a color coding system that was developed and introduced to the industry by T&B®. When using the Color-Keyed® compression system with our Blackburn® line of compression connectors, the installer can count on a reliable, high quality connection.

Specifications

Brand Name
Thomas & Betts
Cable_Size
500 kcmil
Color
Brown
Conductor Material
Copper
Conductor Size
500
Country of Origin
MX
Finish
Tin Plated
Insulation
None
Material
Copper
Number_Of_Holes
2
Package_Quantity
6
Special Features

  • Installed with standard t and b tools with special rounding dies
  • Recommended for up to 15 kV applications
  • Recommended for up to 15 kVAC applications, installed with standard t and b tools with special rounding dies
  • Round hole
  • The rounding die overlapped compressions provide a smooth round surface
  • This combined with the tapered barrel ends, addresses the controlling of potentially damaging electrical stresses of high voltages
  • Tin plated finish
Standard
UL E9809
Stud_Size
1/2
Sub_Brand
Color-Keyed
Temperature_Rating
105
Tongue_Angle
Straight
Type
2-Hole High Voltage
Voltage Rating
600 VAC to 15 kV
