Allen-Bradley Allen-Bradley 1492-L4Q
Allen-Bradley 1492-L4Q
Kirby Risk #: 1882914
UPC: 10662073055249, 66207305524, 662073055242, 00662073055242
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Allen-Bradley
Description
Industry Description

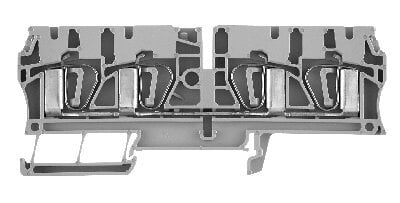

Terminal Block, Spring Clamp Connection, Feed Through with 2 Connection Points 2 on Each Side, 6.1 x 105 x 35.7mm (0.24 x 4.14 x 1.41 in), 1 Pole, Gray, VOLTAGE RATING UR - 600V AC/DC, CSA - 600V AC/DC, IEC - 800V AC/DC, ATEX - 550V AC/
Modified Industry Description
1 Circuit 4 Connection GRAY SPRING CLAMP TERMINAL BLOCK, 0.24 X 4.14 X 1.41 IN
Specifications
| Amperage Rating |
33
|
|---|---|
| Brand Name |
Allen-Bradley
|
| Color |
Gray
|
| Conductor Range |
26-10
|
| Conductor Size |
UR - #26...10 AWG, CSA - #26...10 AWG, IEC - 4mm², ATEX - #20...10 AWG
|
| Country of Origin |
RO
|
| Mounting |
Din Rail
|
| Operating_Voltage |
4
|
| Special Features |
Spring Clamp Connection, Feed Through with 2 Connection Points 2 on Each Side, 1 Pole, Gray, Pkg. Qty. of 50
|
| Standard |
UL,CSA,CE,CUL,MARINE,KC
|
| Sub_Brand |
Allen-Bradley
|
| Terminal_Size |
6.1 x 105 x 35.7mm (0.24 x 4.14 x 1.41 in)
|
| Type |
IEC Spring Clamp Terminal Block
|
| Voltage Rating |
550/600/800//550/600/800
|
