Appleton Appleton BT200-M
Appleton BT200-M
Kirby Risk #: 1881966
UPC: 00781381463645, 781381463645, 0068785546364, 78138146364
Localizer[LocalizerResources.ManufacturerPartNumber].Value + ":") modelSummary.ManufacturerPartNumber)
Brand: Appleton
Description
Industry Description
Mogul UNILETS Type T NEC 8X Conduit Outlet Body With Assembled Cover And Gasket, Hub Size: 2 IN, Length: 17.94 IN, Width: 4.13 IN, Height: 4.44 IN, Material: Malleable Iron, Finish: Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powde
Modified Industry Description
2IN MALL T MOGUL UNILET
AD Description

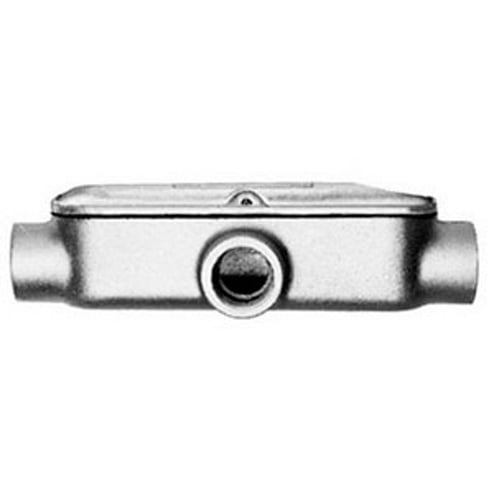

Appleton® Mogul UNILETS™ BT200-M NEC 8x Type T Conduit Outlet Body With Cast Cover and Neoprene Gasket, 2 in Hub, 143 cu-in, Malleable Iron, Triple Coated
Vendor Description
Appleton® NEC 8x Mogul Conduit Outlet Bodies, Covers and Gaskets feature larger body sizes to facilitate the pulling of large and heavy conductors. They have specially designed raised cast covers that provide additional wiring area. These conduit bodies are ideal for pulling straight, 45 or 90 deg angle turns and/or making taps and splices.
Specifications
| Application |
For Use With Rigid Metal Conduit And IMC
|
|---|---|
| Brand Name |
Appleton
|
| Configuration |
T
|
| Connection |
Tapered Female Threaded
|
| Country of Origin |
MX
|
| Finish |
Triple Coated
|
| Form |
Mogul
|
| Hub_Size |
2
|
| Material |
Malleable Iron
|
| Special Features |
|
| Standard |
UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1
|
| Sub_Brand |
Appleton
|
| Trade_Size |
2
|
| Type |
Type T
|
