3M 3M MN8-14R/SX


Description

Industry Description

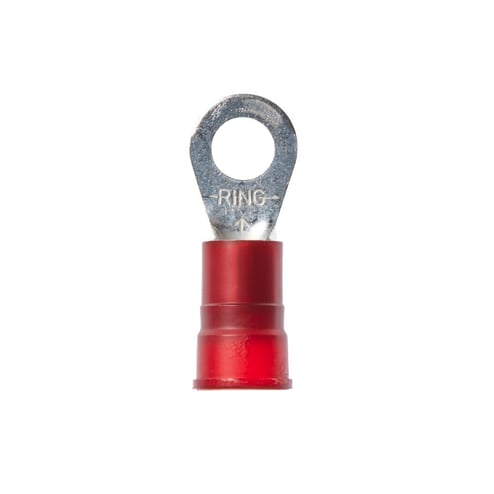

3M™ Scotchlok™ Color-Coded Small Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, brazed-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

Modified Industry Description

8STR INS RING TERM

AD Description

Scotchlok™ 051128-58635 Insulated Standard Ring Terminal, 8 AWG Conductor, 1.26 in L, Brazed Seam Barrel, Copper, Red

Vendor Description

3M™ Scotchlok™ Color-Coded Small Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance.

Specifications

Brand Name
3M
Color
Red
Conductor Size
8 AWG
Country of Origin
USA
Finish
Tin Coated
Label_Description
RING NYLON INSULATED, 10/BOTTLE
Material
Copper
Operating_Voltage
10 per bottle
Package_Quantity
10
Special Features

  • 10 Terminals/bottle
  • 100 Terminals/Case
  • Crimp termination
  • Flared portion of the nylon sleeve offers easy insertion of wires
  • Free hanging (in-line) mounting
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Red nylon-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Standard-style ring tongue fits around the stud
Standard
UL and CSA
Stud_Size
1/4 in
Sub_Brand
3M
Terminal_Size
8 AWG
Type
Insulated Standard
Voltage Rating
600/1000 VAC
