3M 3M MNU18-250DFIK


Description

Industry Description

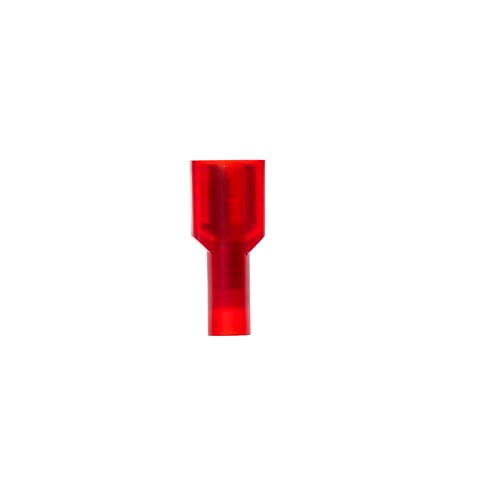

3M™ Scotchlok™ Color-Coded Female Disconnect Terminal has dents and rolled edges to offer superior holding force while allowing for quick and easy disconnect. The terminal has a fully insulated, nylon, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.

Modified Industry Description

FEM DISCONN BULK

AD Description

Scotchlok™ MNU18-250DFIK Disconnect Tab, 22 to 18 AWG Conductor, 1/4 in Tab, 0.08 in ID x 0.25 in L Butted Barrel, ETP Copper, Red, Insulated

Vendor Description

Avoid crimping errors with the stepped design of the nylon sleeve on our 3Mâ„¢ Scotchlokâ„¢ Color-Coded Female Disconnect Terminal. The flared sleeve is fully insulated and offers abrasion resistance, while the butted-seam barrel makes electrical contact available after crimping. This red female disconnect terminal easily attaches to the male tab on the mating part with a tongue that slips over the tab. This product is UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.

Specifications

Brand Name
3M
Color
Red
Conductor Size
22 to 18 AWG
Country of Origin
US
Label_Description
FULLY NYLON INSULATED BUTTED SEAM FEMALE DISCONNECT
Material
ETP Copper
Operating_Voltage
1000 per bulk box
Package_Quantity
1000
Special Features

  • 0.145 in OD nylon insulated, female connection
  • Attached to mating part by tongue of female part slipping over male tab
  • Use of dents and rolled edges on female part provides excellent holding force while allowing easy and quick disconnect
Standard
UL and CSA
Sub_Brand
3M
Tab_Size
1/4 in
Terminal_Size
22 - 18 AWG
Type
Disconnect
Voltage Rating
600 VAC
